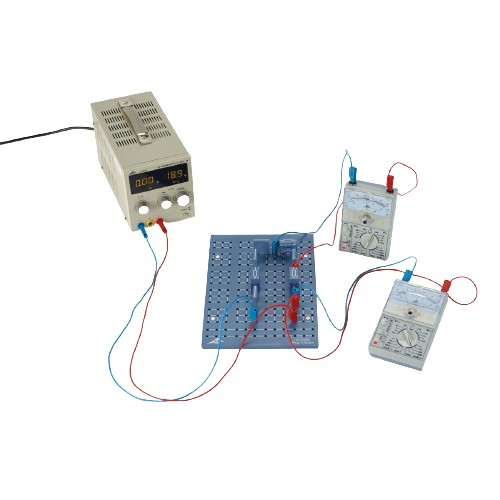

3B Scientific UE3020330-115 Experiment: Kirchhoff's Laws, 115 V

3B Scientific, UE3020330-115, Experiment for Electricity: Kirchhoff's Laws, 115 V, 50/60 Hz

UE3020330-115 Includes Only:

• Plug-in Board for Components
• Linear Resistor, 220 Ohm
• Linear Resistor, 330 Ohm
• Linear Resistor, 470 Ohm
• Linear Resistor, 1 kOhm
• Linear Resistor, 6.8 kOhm
• Linear Resistor, 10 kOhm
• Linear Resistor, 100 kOhm
• Set of 10 Jumpers
• DC Power Supply 20 V, 5 A (115 V, 50/60 Hz)
• Analogue Multimeter ESCOLA 30 - 2 pcs
• Set of 15 Experiment Leads, 75 cm 1 mm²;

Features:

• Objective: Measure voltage and current in circuits featuring resistors in series and in parallel

Kirchhoff's laws are of key importance for calculating current and voltage in various parts of a circuit with multiple branches. In this experiment, Kirchhoff's laws will be verified by measuring voltage and current in various parts of circuits featuring resistors in series and parallel.
