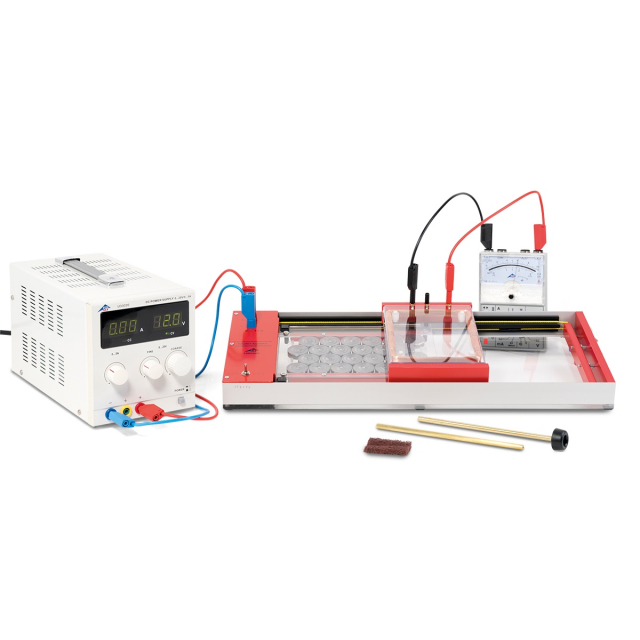

3B Scientific UE3040200-115 Experiment: Induction in Loop, 115 V

3B Scientific, UE3040200-115, Experiment for Electricity: Induction in a Moving Conductor Loop, Basic Equipment, 115 V, 50/60 Hz

UE3040200-115 Includes Only:

• Induction Apparatus
• DC Power Supply 20 V, 5 A (115 V, 50/60 Hz)
• Set of 15 Safety Experiment Leads, 75 cm
• Analogue Multimeter ESCOLA 100
• Digital Stopwatch

Features:

• Objective: Measure the induced voltage in a conductor made into a loop as it moves through a magnetic field

The change in magnetic flux that is needed to induce a voltage in a conductor loop can be caused by a movement of the loop. Such a situation results, for example, when a conductor loop orientated with its plane perpendicular to a homogeneous magnetic field is moved into the magnetic field or withdrawn from it at a constant velocity. In the first case the magnetic flux increases at a rate determined by the relevant parameters, whereas in the second case it decreases in a similar way. Therefore the induced voltages are of opposite signs.
