3B Scientific UE3050321-115 Experiment: Impedances, 115 V

3B Scientific, UE3050321-115, Experiment for Electricity: Impedances, 115 V, 50/60 Hz

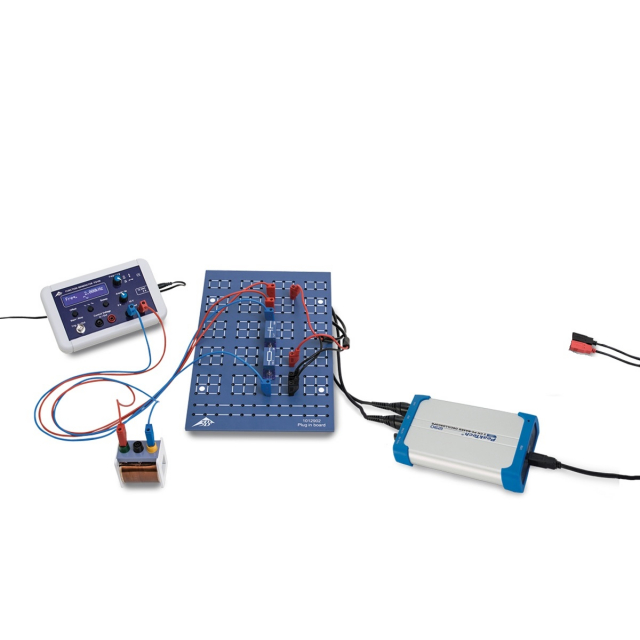

UE3050321-115 Includes Only:

• Plug-in Board for Components
• Capacitor, 1 µF
• Capacitor, 4.7 µF
• Linear Resistor, 10 Ohm
• Function Generator FG 100, 115 V, 50/60 Hz
• PC Oscilloscope, 2x25 MHz
• HF Patch Cord, BNC/4 mm Plug - 2 pcs
• Set of 15 Experiment Leads, 75 cm 1 mm²;
• Coil S with 800 Turns
• Coil S with 1200 Taps

Features:

• Objective: Determining impedance in a circuit with an inductive and a capacitive reactance

AC circuits with inductive and capacitive reactances show resonant behaviour. At the resonant frequency, the impedance of a series connection of an inductive and a capacitive reactance is zero, whereas the impedance of a parallel connection is infinite. This experiment examines this phenomenon with the help of an oscilloscope and a function generator which supplies voltages between 50 Hz and 20,000 Hz.

For more information, please see Data Sheet
