3B Scientific, UE8020200-230, Experiment for Energy and Environment: Photovoltaic Systems II, 230 V, 50/60 Hz
UE8020200-230 Includes Only:
- Halogen spotlight
- Solar modules - 2 pcs
- Digital multimeters - 2 pcs
- Lux meter
- Digital thermometer
- Terminal board with resistor cascade
- Power adjuster
- Jumper
- Set of experiment leads
- Cross piece
- Support brace
- Set of items for covering modules
- Case
Features:

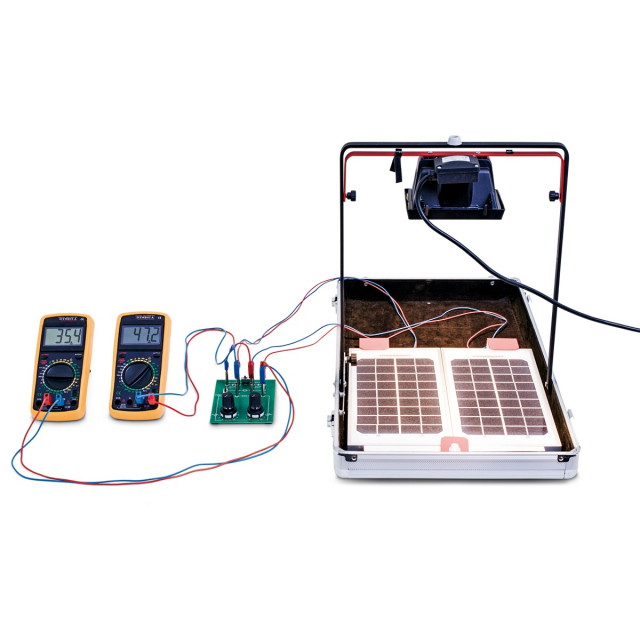

- Objective: Investigate how partial shading affects photovoltaic systems
