ADC 9005BPSMTO Adview2 Diagnostic Station, Temp./BP/SpO2 Masimo Set

Temperature Module: No
  • Brand ADC
  • Part # 9005BPSMTO
  • Model # Adview2
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Temperature Module:
Temperature Module: No

Adview2 Diagnostic Station, Temp./BP/SpO2 Masimo Set

Includes:

  • Rechargeable lithium-ion battery
  • U.S. power cord
  • 10-foot length of tubing
  • Adult Plus and Large Adult Plus cuffs
  • Mini-USB to USB cable
  • Quick Start Guide
  • Quick Reference Guide
  • Adult finger sensor and 8-foot extension cable
  • Oral/axillary probe and well (blue) and box of 20 probe covers

Features:

  • Clinical-grade Advantage™ BP technology from SunTech Medical
  • Contemporary, compact design with an integrated handle and easy-to-read display
  • Manual blood pressure mode for real-time verification
  • Customizable average mode options
  • Next-generation EMR ready with HL7 messaging for electronic data transfer
  • Network enabled with built-in Ethernet or optional Wi-Fi
  • Lithium-ion power for longer-lasting battery life and a lighter weight
  • Built-in memory with up to 99 charting sessions
  • New Pediatric Mode to ensure accurate measurements for younger patients
  • Firmware upgradeable

The ADView 2 is still the only truly modular diagnostic station that grows with your needs. We’ll ship your ADView 2 fully configured and ready to go. User-expandable, connect-and-go construction makes upgrading effortless.

It All Begins with Blood Pressure

The ADC ADView 2 easily captures automated blood pressure measurements at the touch of a button. Non-invasive blood pressure base unit module uses the oscillometric method, with both pulse rate and the mean arterial blood pressure (MAP*) displayed in about 30 seconds. With seven available cuff sizes, ranging from child to thigh, the ADView 2 can be used for patients ages three and older. Adult Plus and Large Adult Plus cuffs come standard.

*Not validated for use in the U.S

Manual mode option for added versatility

Our original ADView was the first diagnostic station to offer a manual mode. It was an innovation developed even earlier for our e-sphyg II, allowing you to capture blood pressure with your stethoscope using the traditional auscultatory method without changing cuffs. Manual mode provides important versatility for your patients with arrhythmias or other complex needs.

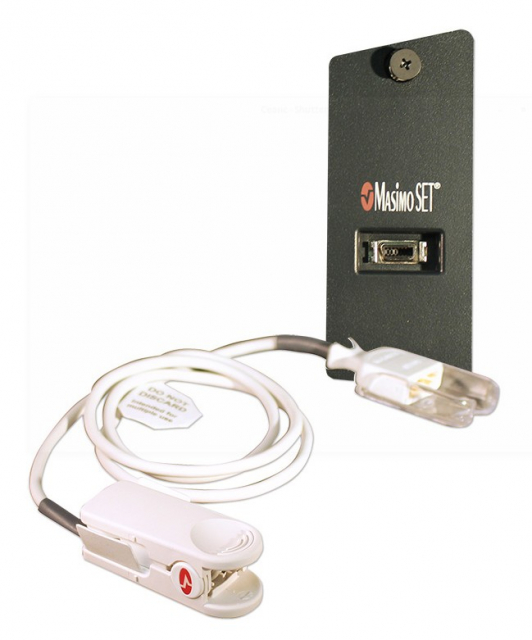

Pulse Oximetry Module

The Masimo-compatible SpO2 module displays pulse rate signal strength during measurement.

Temperature ModuleCovidien Filac™ 3000 thermometry module to your ADView 2 for an oral or axillary temperature reading in as little as four seconds. The module features both Fahrenheit and Celsius scales, switchable with the touch of a button, a Cold Mode for lower ranges, and a built-in, color-coded storage well for the probe.

    See more product information See less

    We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

    Authorized Distributor

    Technical Details

    Optional Accessories
    Reviews
    General Specifications
    Conditions for Use:Operating: 10°C (50°F) to 40°C (104°F) 15 - 90% RH non-condensing - 700 kPa - 1060 kPa.
    Operating the monitor in an environment at maximum temperature can produce temperatures exceeding 41°C (41.6°C highest recorded) on a patient-applied part.It is up to the operator to determine if this temperature is too high based upon the condition of the patient and, if so, to ensure the ambient temperature of the environment is 38°C or below.
    Storage:-20°C (-4°F) to 55°C (149°F) 15 - 90% RH non-condensing - 500 kPa - 1060 kPa. Performance can be affected if used or stored outside the specified temperature, humidity, or altitude listed in the ranges above.
    Power:Internal power supply. Input: 100-240 VAC at 1.5A max, 50-60 Hz. Output +9VDC at 5A IEC 320 type input connector.
    Battery:Type: 7.2v, 6600mAh Internal Lithium-Ion battery Run Time (full charge): ~20 hrs* / 200 BP cycles Charge Time: ~6 hrs at 23deg Celsius +/- 2deg*Unit with BP, Temp, SpO2, Wi-Fi, barcode scanner
    Calibration:The accuracy of cuff -pressure transducers/indicators should be verified bi-annually.
    Safety Systems:Independent hardware over-pressure circuit and redundant software overpressure algorithm to limit cuff pressure to less than 300 mmHg (+20/-10mmHg). Independent hardware timing circuit and redundant software timer algorithm to limit the duration of a blood pressure cycle to less than 180 seconds.
    Dimensions:Size (without thermometer option): 8" H x 6.75" W x 5.2" D or 215mm H x 190mm W x 140mm D
    Standards:ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012, EN 60601-1:2006/A1:2013, IEC 60601-1-2: 2007 EMC, IEC 80601-2-30: 2013, ISO 80601-2-61: 2011, ISO 15223-1:2012, ISO 10993-1, 2009, ISO 10993-5, 2009, EN ISO 10993-10, 2010, ISO 81060-2:2013, EN 50419: 2006, EN ISO 14971:2009, CSA C22.2 No. 60601-1, EN ISO 81060-1: 2012, IEC 60601-1-6: 2013
    Classifications:Equipment Classification: Class IIa per MDD, Class I (Electrical Shock), Continuous mode of operation, CE
    Ingress of liquid:Ingress Protection: IPX1: This device is protected against harmful effects of dripping water per IEC 60529.
    SpO2
    Saturation Normal (no motion):70-100%Arms ± 2%
    Pulse Heart rate w/motion:20-300 BPM: ±3 BPM
    Pulse Heart rate:20-300 BPM: ±3 BPM
    Temperature
    Temperature Accuracy:Quick Mode (Oral): ± 0.3°C
    Std. Mode (Aux/Rectal): ± 0.1°C
    Direct Mode ± 0.1°C
    Response Time:4 sec (quick mode); 10-15 sec. (Axillary/Rectal); 60 sec.(direct mode)
    Resolution:0.1°C
    Blood Pressure
    Range:Pressure: Diastolic: 20-200 mmHg (adult), 20-160 mmHg (pediatric).
    Systolic: 40-260 mmHg (adult), 40-230 mmHg (pediatric)
    Heart Rate: 30-220 BPM (beats per minute)
    Accuracy (BP):Meets or exceeds ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive accuracy (±5mmHg mean error with 8mmHg standard deviation).
    Notes

    * Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

    Product Details
    General Specifications
    Conditions for Use:Operating: 10°C (50°F) to 40°C (104°F) 15 - 90% RH non-condensing - 700 kPa - 1060 kPa.
    Operating the monitor in an environment at maximum temperature can produce temperatures exceeding 41°C (41.6°C highest recorded) on a patient-applied part.It is up to the operator to determine if this temperature is too high based upon the condition of the patient and, if so, to ensure the ambient temperature of the environment is 38°C or below.
    Storage:-20°C (-4°F) to 55°C (149°F) 15 - 90% RH non-condensing - 500 kPa - 1060 kPa. Performance can be affected if used or stored outside the specified temperature, humidity, or altitude listed in the ranges above.
    Power:Internal power supply. Input: 100-240 VAC at 1.5A max, 50-60 Hz. Output +9VDC at 5A IEC 320 type input connector.
    Battery:Type: 7.2v, 6600mAh Internal Lithium-Ion battery Run Time (full charge): ~20 hrs* / 200 BP cycles Charge Time: ~6 hrs at 23deg Celsius +/- 2deg*Unit with BP, Temp, SpO2, Wi-Fi, barcode scanner
    Calibration:The accuracy of cuff -pressure transducers/indicators should be verified bi-annually.
    Safety Systems:Independent hardware over-pressure circuit and redundant software overpressure algorithm to limit cuff pressure to less than 300 mmHg (+20/-10mmHg). Independent hardware timing circuit and redundant software timer algorithm to limit the duration of a blood pressure cycle to less than 180 seconds.
    Dimensions:Size (without thermometer option): 8" H x 6.75" W x 5.2" D or 215mm H x 190mm W x 140mm D
    Standards:ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012, EN 60601-1:2006/A1:2013, IEC 60601-1-2: 2007 EMC, IEC 80601-2-30: 2013, ISO 80601-2-61: 2011, ISO 15223-1:2012, ISO 10993-1, 2009, ISO 10993-5, 2009, EN ISO 10993-10, 2010, ISO 81060-2:2013, EN 50419: 2006, EN ISO 14971:2009, CSA C22.2 No. 60601-1, EN ISO 81060-1: 2012, IEC 60601-1-6: 2013
    Classifications:Equipment Classification: Class IIa per MDD, Class I (Electrical Shock), Continuous mode of operation, CE
    Ingress of liquid:Ingress Protection: IPX1: This device is protected against harmful effects of dripping water per IEC 60529.
    SpO2
    Saturation Normal (no motion):70-100%Arms ± 2%
    Pulse Heart rate w/motion:20-300 BPM: ±3 BPM
    Pulse Heart rate:20-300 BPM: ±3 BPM
    Temperature
    Temperature Accuracy:Quick Mode (Oral): ± 0.3°C
    Std. Mode (Aux/Rectal): ± 0.1°C
    Direct Mode ± 0.1°C
    Response Time:4 sec (quick mode); 10-15 sec. (Axillary/Rectal); 60 sec.(direct mode)
    Resolution:0.1°C
    Blood Pressure
    Range:Pressure: Diastolic: 20-200 mmHg (adult), 20-160 mmHg (pediatric).
    Systolic: 40-260 mmHg (adult), 40-230 mmHg (pediatric)
    Heart Rate: 30-220 BPM (beats per minute)
    Accuracy (BP):Meets or exceeds ANSI/AAMI/ISO 81060-2:2013 standard for non-invasive accuracy (±5mmHg mean error with 8mmHg standard deviation).
