AEMC 2150.33 OX 9104 Hand-Held Oscilloscope IV 100MHz

  • Brand AEMC
  • Part # 2150.33
  • Model # OX 9104
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

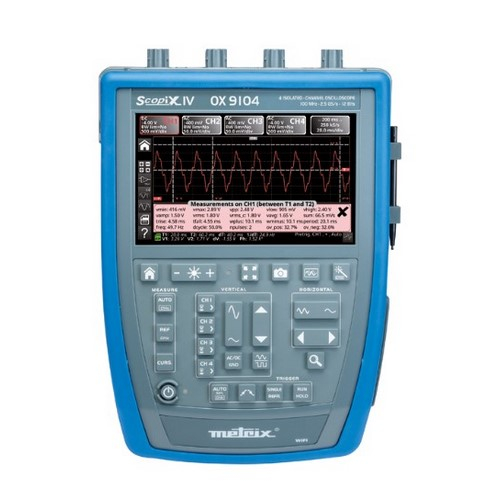

AEMC, 2150.33, OX9104 Hand-Held Oscilloscope IV 100MHz (4-Channel, 100MHz)

The OX 9104 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, four-channel oscilloscope with 100MHz bandwidth, 4 channel DMM 8000 cts, FFT function and recording mode, and power measurement. Large touch screen 7" color LCD display. Ideal for both laboratory and field use, the OX 9104 utilizes the patented system of "plug-and-play" accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Inputs / BandwidthIsolated channels
Display ModeVectors with interpolation - 2500 real acquisition points on screen
Traces On Screen4 Traces + 4 References (split screen and full screen modes)
Max Input Voltage600V/CAT III (1000V per Probix) - from 50 to 400 Hz - Probix connectors
Trigger TypeEdge, Pulse width (16ns - 20s), delay (48ns - 20s), counting (3 to 16,384 events), Continuous adjustment of Trigger position
Max. Sampling Rate2.5GS/s in one-shot mode on each channel (100GS/s max. in ETS mode) 12 bits resolution
Memory Depth100kpts per channel and file viewer in the manager
InterfaceIsolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements
BatteriesRechargeable Li-Ion 6,900mAh 40W battery pack, External charger
Charging Time98 to 264VAC (50/60Hz) 2 hours when OFF
Battery lifeApprox. 8 hours
IP RatingIP54 per IEC 60529
SafetyIEC/EN 61010-2-30 (1000V CAT II; 600V CAT III), IEC 1326-1
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Inputs / BandwidthIsolated channels
Display ModeVectors with interpolation - 2500 real acquisition points on screen
Traces On Screen4 Traces + 4 References (split screen and full screen modes)
Max Input Voltage600V/CAT III (1000V per Probix) - from 50 to 400 Hz - Probix connectors
Trigger TypeEdge, Pulse width (16ns - 20s), delay (48ns - 20s), counting (3 to 16,384 events), Continuous adjustment of Trigger position
Max. Sampling Rate2.5GS/s in one-shot mode on each channel (100GS/s max. in ETS mode) 12 bits resolution
Memory Depth100kpts per channel and file viewer in the manager
InterfaceIsolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements
BatteriesRechargeable Li-Ion 6,900mAh 40W battery pack, External charger
Charging Time98 to 264VAC (50/60Hz) 2 hours when OFF
Battery lifeApprox. 8 hours
IP RatingIP54 per IEC 60529
SafetyIEC/EN 61010-2-30 (1000V CAT II; 600V CAT III), IEC 1326-1
Note

Note: Please read description carefully. Do not base your order on the picture presented.
