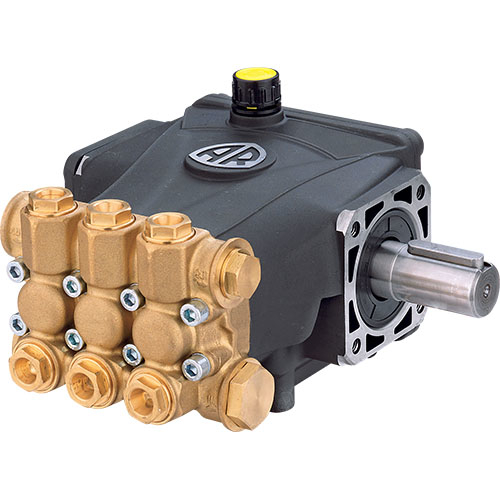

AR North America RC13.17N 3.4 Max GPM Plunger Pump, 2500 Max PSI

The RC13.17N is a commercial triplex plunger pump designed for a wide variety of high pressure washing applications. Constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling ns are anodized for maximum heat dissipation. Oversized needle bearings on the drive side, and ball on the non-drive side together with the precision supports assure positive alignment and centering in relation to the crankcase. Valve cages of special designed Ultra-Form provide positive seating and extended life. Ball bearings on both sides of solid shaft drive pumps. One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement.

Features:

• Manifold: High strength forged brass for long term use
• Bolts: Eight 6mm
• Plungers: Ceramic Plungers, thicker wall to help prevent thermal shock
• Valves: Stainless Steel, valve seat o-ring is side mounted
• Seals: High quality high pressure seals. Low-pressure seal with a built in scraper.
