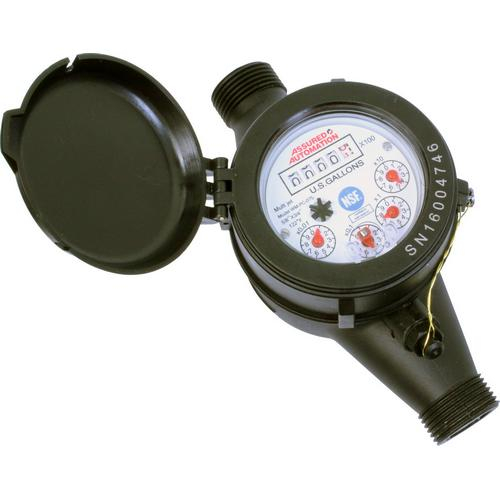

Assured Automation WM-PC-150-R/10G WM-PC Series Plastic Water Meter

Water flows through the meter’s strainer (inlet and internal) and into the measuring chamber where it drives the impeller. A driving magnet transmits the movement of the impeller to a driven magnet located within the sealed register. The magnet is connected to a gear train which translates the impeller rotations into volume totalizers displayed on the meter’s register dial face.

The WM-PC Series water meter is top loaded and consists of three basic components: main case, measuring chamber, and head ring. The main cases of all sizes are constructed with a sturdy polymer.

All meters include pipe adapters (2 gaskets, 2 couplings, and 2 nuts) with nuts and couplings made from the same polymer as the main case.

Features:

• All parts in contact with water are constructed of corrosion-resistant materials.
• Body is constructed of reinforced plastic.
• Impeller is the only moving part in contact with water, giving the meter long life and consistantly reliable operation.
• Extra filter at the inlet of the meter body permits cleaning without having to open the meter.
• Dial plate design in US Gallons.
• Optional pulse output consisting of plastic housing with contact reed switch and cable.
• 1 Pulse Output / 10 gal.
