BlackBox, ACU5600A-MM, KVM Extender, DVI-D, USB 2.0, Single Access, Multi-Mode Fiber

includes:

Features:

Locate critical computing hardware in a secure environment.
Distance depends on the fiber. Transmit up to 150 meters over OM2 fiber or up to 400 meters for OM4 fiber.
Connect USB 2.0 mass storage devices, keyboards, mice, touch screens, and other peripherals.
Dual-link DVI video extension is lossless with very low latency.
Provides resolutions up to 2560 x 1600 @60 Hz.
Supports bidirectional analog audio (line in/out for microphones and headphones).
Extend RS-232 signals with RTS/CTS flow control.
Robust metal case resists shock and vibrations.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Approvals	CE, FCC
Compatibility	All computers with DVI, USB, and audio connectors

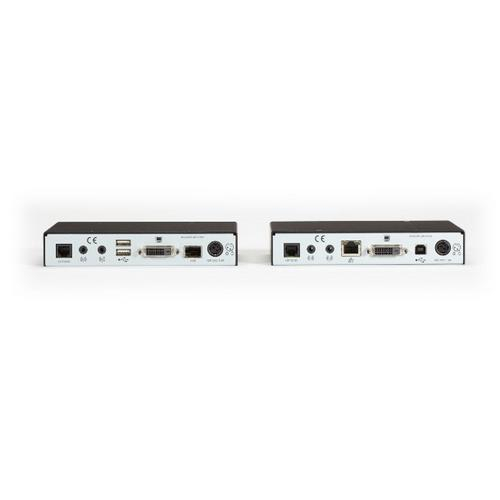

Connectors	TX: DVI, (2) audio 3.5-mm, USB Type B, Ethernet RJ-45; RX: DVI, audio 3.5-mm (line in/out), audio 3.5-mm (mic in/headphones); USB Type A
Dimensions	1.2"H x 6.65"W x 4.8" D
Operating Temperature	32 to 104° F
Power	100-240 VAC, 50â€“60 Hz, 0.7 A input to power adapters; 12 VDC, 18W output
Resolution	2560 x 1600 at 60 Hz
Weight	1.3 lbs.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Approvals	CE, FCC
Compatibility	All computers with DVI, USB, and audio connectors
Connectors	TX: DVI, (2) audio 3.5-mm, USB Type B, Ethernet RJ-45; RX: DVI, audio 3.5-mm (line in/out), audio 3.5-mm (mic in/headphones); USB Type A
Dimensions	1.2"H x 6.65"W x 4.8" D
Operating Temperature	32 to 104° F
Power	100-240 VAC, 50â€“60 Hz, 0.7 A input to power adapters; 12 VDC, 18W output
Resolution	2560 x 1600 at 60 Hz
Weight	1.3 lbs.
