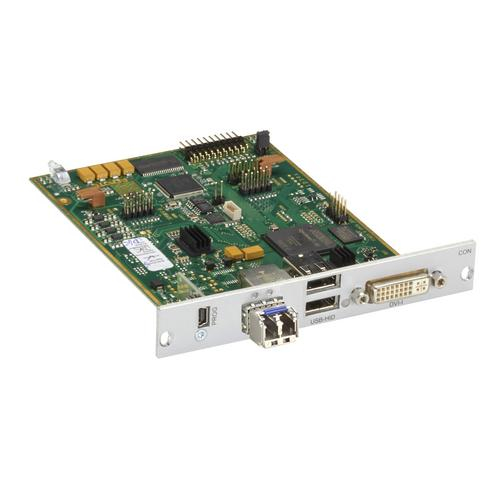

BlackBox ACX1MR-VDHID-SM DKM KVM Interface Card

Interconnect Connector: (1) LC
  • Brand BlackBox
  • Part # ACX1MR-VDHID-SM
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Interconnect Connector:
Interconnect Connector: (1) LC

BlackBox, ACX1MR-VDHID-SM, DKM KVM Extender Receiver Interface Card, SM Fiber

Features:

  • Part of the DKM HD Video and Peripheral Matrix Switching system of transmitter and receiver interface cards and housings.
  • Works over multimode or single-mode fiber cabling.
  • DVI-I (digital or analog) and USB HID module for DKM Modular Housing chassis.
  • Supports DVI-I/VGA monitors with USB keyboards and mice.
  • Get DVI-I video with resolutions up to 2048 x 1152 at 60 Hz.
  • 2-, 4-, 6-, or 21-port housing available with or without redundant power.
  • Compatible with the DKM FX Compact Extender.

NOTE(s):This product works with: - DKM HD Video and Peripheral Matrix Switch Modular Housing chassis. - DKM HD Video and Peripheral Matrix Switch Transmitter/Receiver Cards Transmitters and receivers can be copper or fiber based.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
ApprovalsCE, FCC, RoHS, WEEE
CascadableNo
Connectors(1) LC; (1) DVI-I female (analog and digital); (1) USB Type B female; (1) mini USB
DDC SupportUse monitor DDC from RX, 4:3, 16:9
Dimensions0.7"H x 5"W x 5.75"D (1.8 x 12.7 x 14.6 cm)
DistanceBetween TX and RX: 32,800-ft. (10,000-m) using single-mode fiber cable 3,280-ft. (1000-m) using OM3 50-micron multimode fiber cable 1,300-ft. (400-m) using 50-micron multimode fiber cable 650-ft. (200-m) 62.5-micron multimode fiber cable
EncryptionNo
EnvironmentalOperating Humidity: 80%, non condensing
Hotkey SupportYes
IndicatorsStatus LEDs
InterfaceDVI-I video, USB keyboard and mouse (HID)
IP-EnabledNo
Operating System SupportAll Windows, MAC, SUN, Linux/UNIX
Operating Temperature+41 to +113°F (+5 to +45°C);
OSD SupportYes, use hotkeys to open it when the DKM is also installed
PowerSource: taken from ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000 hours
Weight0.6 lb. (0.3 kg)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ApprovalsCE, FCC, RoHS, WEEE
CascadableNo
Connectors(1) LC; (1) DVI-I female (analog and digital); (1) USB Type B female; (1) mini USB
DDC SupportUse monitor DDC from RX, 4:3, 16:9
Dimensions0.7"H x 5"W x 5.75"D (1.8 x 12.7 x 14.6 cm)
DistanceBetween TX and RX: 32,800-ft. (10,000-m) using single-mode fiber cable 3,280-ft. (1000-m) using OM3 50-micron multimode fiber cable 1,300-ft. (400-m) using 50-micron multimode fiber cable 650-ft. (200-m) 62.5-micron multimode fiber cable
EncryptionNo
EnvironmentalOperating Humidity: 80%, non condensing
Hotkey SupportYes
IndicatorsStatus LEDs
InterfaceDVI-I video, USB keyboard and mouse (HID)
IP-EnabledNo
Operating System SupportAll Windows, MAC, SUN, Linux/UNIX
Operating Temperature+41 to +113°F (+5 to +45°C);
OSD SupportYes, use hotkeys to open it when the DKM is also installed
PowerSource: taken from ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000 hours
Weight0.6 lb. (0.3 kg)
