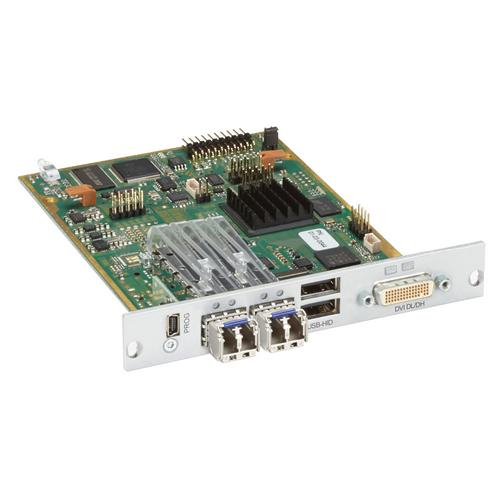

BlackBox ACX2MR-DHH-2S DKM KVM Receiver Card

Interconnect Connector: (2) LC , Resolutions Up To: 1920 x 1080
  • Brand BlackBox
  • Part # ACX2MR-DHH-2S
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Interconnect Connector:
Interconnect Connector: (2) LC
Resolutions Up To:
Resolutions Up To: 1920 x 1080

Black Box, ACX2MR-DHH-2S, DKM KVM Receiver Card, Dual-Head, Fiber, Redundant Ports

Features:

  • Fiber receiver card for DKM FX Extender Modular Housings.
  • Supports dual-link resolutions up to 1902 x 1080 on each video.
  • Supports redundant interconnect ports but does not change video quality.
  • Total bandwidth stays the same whether one or two ports are used.

This product works with:

  • DKM FX Modular Extension Housings with 2, 4, 6, or 21 slots (ACXMODH2, ACXMODH2R, ACXMODH4, ACXMODH4R, ACXMODH6R, and ACXMODH21R)
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
ApprovalsCE, FCC, RoHS
Connectors(2) LC interconnect, (1) LFH59 F, (1) USB Type B F/(2) USB Type A F, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance2,800 feet (10,000m) using single-mode 9µm fiber cable 3,280 feet (1000m) using multimode 50µm (OM3) cable 1,300 feet (400m) using multimode 50µm cable 650 feet (200m) using multimode 62.5µm cable
EnvironmentalOperating humidity: 80%, non condensing
InterfaceDual-link DVI-D video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDual-link DVI-D video, USB HID (keyboard and mouse)
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerTaken from frame, ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000
Storage temperature-13 to +140° (-25 to +60° C);
Weight0.25 lb (0.11 kg)
Product Details
ApprovalsCE, FCC, RoHS
Connectors(2) LC interconnect, (1) LFH59 F, (1) USB Type B F/(2) USB Type A F, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance2,800 feet (10,000m) using single-mode 9µm fiber cable 3,280 feet (1000m) using multimode 50µm (OM3) cable 1,300 feet (400m) using multimode 50µm cable 650 feet (200m) using multimode 62.5µm cable
EnvironmentalOperating humidity: 80%, non condensing
InterfaceDual-link DVI-D video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDual-link DVI-D video, USB HID (keyboard and mouse)
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerTaken from frame, ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000
Storage temperature-13 to +140° (-25 to +60° C);
Weight0.25 lb (0.11 kg)
