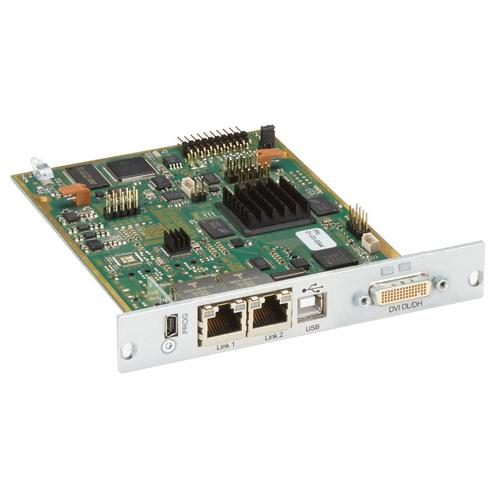

BlackBox ACX2MT-DLH-2C DKM KVM Transmitter Card

Interconnect Connector: (2) RJ-45, Resolutions Up To: 2560 x 1600
  • Brand BlackBox
  • Part # ACX2MT-DLH-2C
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Interconnect Connector:
Interconnect Connector: (2) RJ-45
Resolutions Up To:
Resolutions Up To: 2560 x 1600

Black Box, ACX2MT-DLH-2C, DKM KVM Transmitter Card, DVI-D, USB-HID, 2X CATx

Features:

  • Copper transmitter card for DKM FX Extender Modular Housings.
  • Supports dual-link resolutions up to 2560 x 1600.
  • Supports redundant interconnect ports but does not change video quality.
  • Total bandwidth stays the same whether one or two ports are used.

Modular KVM extender TX interface card that supports Dual Head DVI-D and USB HID for HS Fiber connectivity. Use with the DKM or DKM FX chassis for modular switching or as a point-to-point KVM extender. High Speed SM Fiber connection Dual-Head Video, each video head can support up to 1920x1080 resolution Occupies (1) slot of housing space. Compatible with the DKM FX Compact Extender.

This product works with:

  • DKM FX Modular Extension Housings with 2, 4, 6, or 21 slots (ACXMODH2, ACXMODH2R, ACXMODH4, ACXMODH4R, ACXMODH6R, and ACXMODH21R)
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
ApprovalsCE, FCC, RoHS
Connectors(2) RJ-45 interconnect, (1) LFH59 F, (1) USB Type B F / (2) USB Type A F, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance400 feet (140 m), solid conductor CATx; 200 feet (70 m), stranded conductor CATx
EnvironmentalOperating humidity: 80%, non condensing
InterfaceDual-link DVI-D video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDual-link DVI-D video, USB HID (keyboard and mouse)
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerTaken from frame, ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000
Storage temperature-13 to +140° (-25 to +60° C);
Weight0.25 lb (0.11 kg)
Product Details
ApprovalsCE, FCC, RoHS
Connectors(2) RJ-45 interconnect, (1) LFH59 F, (1) USB Type B F / (2) USB Type A F, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance400 feet (140 m), solid conductor CATx; 200 feet (70 m), stranded conductor CATx
EnvironmentalOperating humidity: 80%, non condensing
InterfaceDual-link DVI-D video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDual-link DVI-D video, USB HID (keyboard and mouse)
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerTaken from frame, ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000
Storage temperature-13 to +140° (-25 to +60° C);
Weight0.25 lb (0.11 kg)
