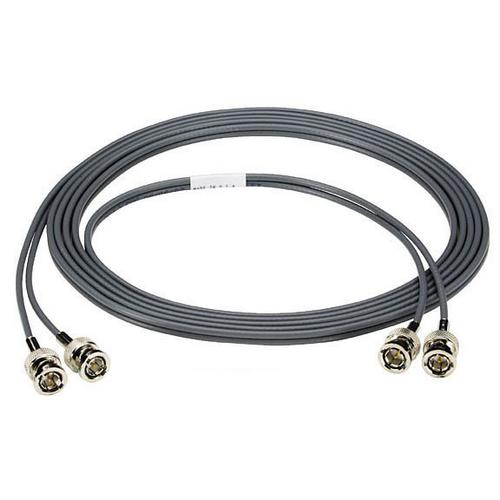

BlackBox, DS3-0050-BNC, High-Speed DS-3 Coax Cable, BNC-BNC, 50' (15.2-m)

The right connection for your high-speed DS-3 equipment.

Features:

Use to interconnect or cross-connect DS-3 transmission equipment and Digital System Cross-connect (DSX) systems.
Guaranteed for life!
Cable is Siamese-style with two conductors.
For superior performance, conductors are solid, silver-plated, 26 AWG copper.
Low attenuation at standard frequencies.
For indoor environments.
UL® listed to NEC® and CEC Type CMR.
Compliant with Bellcore GR-139-CORE specifications and flame resistant to UL® 1666.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Impedance (Nominal)	75 ohms
Conductors	26 AWG silver-plated, solid copper
Construction	95% coverage braid
CSA	CXC FT-4
Dielectric	Cellular polyethylene
Jacket	Gray PVC
Rating	UL® Listed, NEC® Type CMR
Return Loss (Minimum)	30 dB at 100 MHz
Shield	Foil with tinned copper
Structural Loss	30 dB at 15-90 MHz
Velocity of Propagation (Nominal)	78%

Impedance (Nominal)	75 ohms
Conductors	26 AWG silver-plated, solid copper
Construction	95% coverage braid
CSA	CXC FT-4
Dielectric	Cellular polyethylene
Jacket	Gray PVC
Rating	UL® Listed, NEC® Type CMR
Return Loss (Minimum)	30 dB at 100 MHz
Shield	Foil with tinned copper
Structural Loss	30 dB at 15-90 MHz
Velocity of Propagation (Nominal)	78%

Note: Please read description carefully. Do not base your order on the picture presented.
