BlackBox KVXLCDPF-100-SFPBUN1 KVM Extender, MM 850nm, 550m

  • Brand BlackBox
  • Part # KVXLCDPF-100-SFPBUN1
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

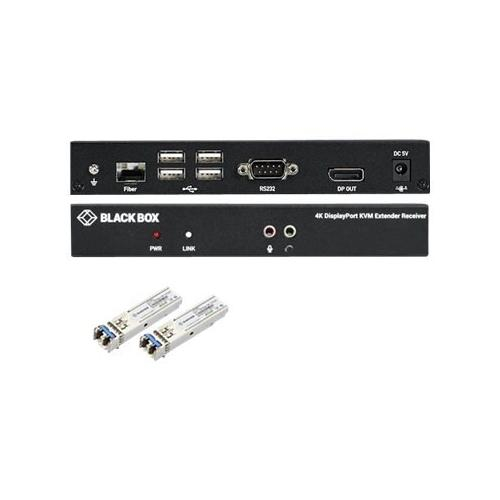

Black Box, KVXLCDPF-100-SFPBUN1, KVM Extender Over Fiber, 4K, Single-Head, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video with 2 SFPs, 1250-Mbps - LC, MM 850nm, 550m

KVXLCDPF-100-SFPBUN1 Includes Only:

  • (1) 4K DisplayPort KVM Fiber Extender Transmitter
  • (1) 4K DisplayPort KVM Fiber Extender Receiver
  • (2) 5-VDC, 2-A Power Supplies
  • (1) USB Type A to B Cable
  • (1) 4K DisplayPort Cable (4-ft./1.2-m)
  • (1) Audio Microphone/Speaker Combo Cable
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Housing MaterialMetal Chassis
ConnectorsTRANSMITTER
Host connection:
Video Input: (1) DisplayPort female;
Serial Control Port: (1) DB9 female;
Link Port: (1) SFP cage;
USB: (1) USB Type B female;
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) DisplayPort female

RECEIVER
Console connection: ;
Video Output: (1) DisplayPort female;
Serial Control Port: (1) DB9 male;
Link Port: (1) SFP cage;
USB: (4) USB Type A female;
Audio: (1) Mic In, (1) Speaker Out
DDC SupportDDC, DDC2, DDC2B
LED IndicatorsPower: Red LED;
Link: Green LED
MTBFTransmitter (TX): 137,540 Hours
Receiver (RX:) 165,620 Hours

*Using MIL-HDBK-217F (N2) Parts Count Prediction Calculator
Environment condition which is GB (Ground Benign: Business and Scientific computers included in this Environment)
Operating Temperature32 to 122° F (0 to 50° C)
Resolution3840x2160 at30Hz,4K at 30 Hz, 3008x1692 at60Hz(Mac), 2560x1600 at60Hz, 2560x1440 at60Hz, 2560x1440 at30Hz, 1920x1200 at60Hz, 1920x1080 at60Hz, 1680x1050 at60Hz, 1440x900 at60Hz(Mac), 1366x768 at60Hz, 1360x768 at60Hz, 1280x1024 at60Hz, 1280x800 at60Hz, 1280x768 at60Hz, 1152x864 at60Hz, 1024x768 at60Hz, 1024x600 at60Hz, 800x600 at60Hz
Storage Temperature-4 to +140° F (-20 to +60° C)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Housing MaterialMetal Chassis
ConnectorsTRANSMITTER
Host connection:
Video Input: (1) DisplayPort female;
Serial Control Port: (1) DB9 female;
Link Port: (1) SFP cage;
USB: (1) USB Type B female;
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) DisplayPort female

RECEIVER
Console connection: ;
Video Output: (1) DisplayPort female;
Serial Control Port: (1) DB9 male;
Link Port: (1) SFP cage;
USB: (4) USB Type A female;
Audio: (1) Mic In, (1) Speaker Out
DDC SupportDDC, DDC2, DDC2B
LED IndicatorsPower: Red LED;
Link: Green LED
MTBFTransmitter (TX): 137,540 Hours
Receiver (RX:) 165,620 Hours

*Using MIL-HDBK-217F (N2) Parts Count Prediction Calculator
Environment condition which is GB (Ground Benign: Business and Scientific computers included in this Environment)
Operating Temperature32 to 122° F (0 to 50° C)
Resolution3840x2160 at30Hz,4K at 30 Hz, 3008x1692 at60Hz(Mac), 2560x1600 at60Hz, 2560x1440 at60Hz, 2560x1440 at30Hz, 1920x1200 at60Hz, 1920x1080 at60Hz, 1680x1050 at60Hz, 1440x900 at60Hz(Mac), 1366x768 at60Hz, 1360x768 at60Hz, 1280x1024 at60Hz, 1280x800 at60Hz, 1280x768 at60Hz, 1152x864 at60Hz, 1024x768 at60Hz, 1024x600 at60Hz, 800x600 at60Hz
Storage Temperature-4 to +140° F (-20 to +60° C)
