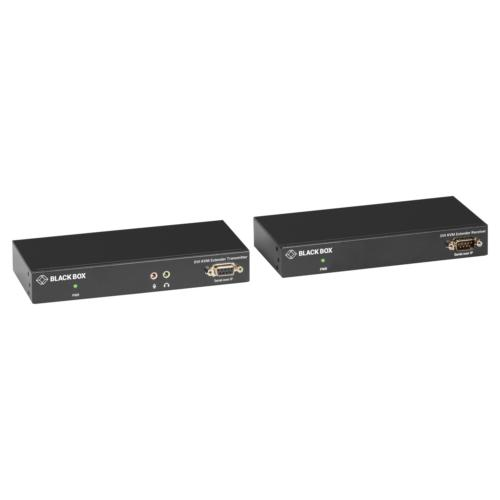

BlackBox KVXLCF-100 KVM Extender Over Fiber, Single-Head

  • Brand BlackBox
  • Part # KVXLCF-100
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Black Box, KVXLCF-100, KVM Extender Over Fiber, Single-Head, DVI-I, USB 2.0, Serial, Audio, Local Video

KVXLCF-100 Includes Only:

  • (1) DVI KVM Fiber Extender Transmitter
  • (1) DVI KVM Fiber Extender Receiver
  • (2) Power Supplies (includes US, EU, UK plug types)
  • (1) DVI-I cable (6-ft./1.8-m)
  • (1) 3.5mm audio cable (6-ft./1.8-m)
  • (1) USB-B to USB-A cable (6-ft./1.8-m)

Features with all optional accessories:

  • DVI-I single-monitor transmission up to 30 km over single mode cable
  • Supports DVI-I video and VGA (using adapter)
  • DVI-I/VGA video resolution up to 1920x1200 at 60Hz
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
  • Local DVI port loopback for monitoring on transmitter (TX) unit
  • Supports EDID pass-through
  • Rackmount kit available in 1U (19" standard)
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
Housing MaterialMetal Chassis
ConnectorsTRANSMITTER
Host connection:
Video Input: (1) DVI-I female;
Link Port: (1) SFP Cage;
USB: (1) USB Type B female;
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) DVI-I female

RECEIVER
Console connection:
Video Output: (1) DVI-I female;
Serial Control Port: (1) DB9 male;
Link Port: (1) SFP Cage;
USB: (4) USB Type A female;
Audio: (1) Mic In, (1) Speaker Out
DDC SupportDDC, DDC2, DDC2B
Dimensions (Receiver)1.06"H x 3.27"W x 7.09"D (2.7 x 8.3 x 18 cm)
Dimensions (Transmitter)1.06"H x 3.27"W x 7.09"D (2.7 x 8.3 x 18 cm)
DistanceFiber Optic Cable: Up to 33,000 ft. (10 km)
MTBFTransmitter (TX): 137,540 Hours
Receiver (RX:) 165,620 Hours

*Using MIL-HDBK-217F (N2) Parts Count Prediction Calculator
Environment condition which is GB (Ground Benign: Business and Scientific computers included in this Environment)
Operating Humidity0 to 80%, noncondensing
Operating SystemOS Independent
Operating Temperature32 to 122° F (0 to 50° C)
PowerExternal 5-VDC, 2-A Power Supply
ResolutionMaximum - 1920 x 1200 at 60 Hz
Storage Temperature-4 to +140° F (-20 to +60° C)
Indicators(1) Power LED
Weight (Receiver)0.81 lb. (0.37 kg)
Weight (Transmitter)0.77 lb. (0.35 kg)
Product Details
Housing MaterialMetal Chassis
ConnectorsTRANSMITTER
Host connection:
Video Input: (1) DVI-I female;
Link Port: (1) SFP Cage;
USB: (1) USB Type B female;
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) DVI-I female

RECEIVER
Console connection:
Video Output: (1) DVI-I female;
Serial Control Port: (1) DB9 male;
Link Port: (1) SFP Cage;
USB: (4) USB Type A female;
Audio: (1) Mic In, (1) Speaker Out
DDC SupportDDC, DDC2, DDC2B
Dimensions (Receiver)1.06"H x 3.27"W x 7.09"D (2.7 x 8.3 x 18 cm)
Dimensions (Transmitter)1.06"H x 3.27"W x 7.09"D (2.7 x 8.3 x 18 cm)
DistanceFiber Optic Cable: Up to 33,000 ft. (10 km)
MTBFTransmitter (TX): 137,540 Hours
Receiver (RX:) 165,620 Hours

*Using MIL-HDBK-217F (N2) Parts Count Prediction Calculator
Environment condition which is GB (Ground Benign: Business and Scientific computers included in this Environment)
Operating Humidity0 to 80%, noncondensing
Operating SystemOS Independent
Operating Temperature32 to 122° F (0 to 50° C)
PowerExternal 5-VDC, 2-A Power Supply
ResolutionMaximum - 1920 x 1200 at 60 Hz
Storage Temperature-4 to +140° F (-20 to +60° C)
Indicators(1) Power LED
Weight (Receiver)0.81 lb. (0.37 kg)
Weight (Transmitter)0.77 lb. (0.35 kg)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
