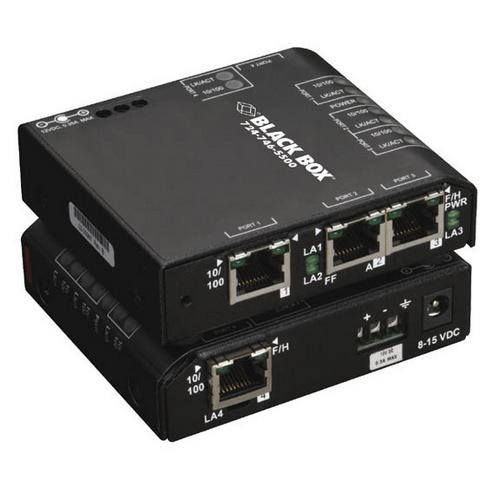

BlackBox, LBH101A-H-12, 4 Port Industrial Fast Ethernet Switch Hardened Temperature, 12VDC

Features:

Provide four 10-/100-Mbps UTP switch ports.
Part of the BLACK BOX® Media Converter Switch family, providing network extension for any environment.
Rackmount up to 16 units in the optional Rackmount Tray or Powered Rackmount Tray.
Mount on DIN rails with optional brackets.
Two sets of LEDs enable you to see status information from the front, top, or side.
Support both half- and full-duplex operation.
Support VLAN tagging and spanning tree passthrough.
All ports support autonegotiation, so you can easily attach any 10- or 100-Mbps device.

Convenient Switches are versatile autosensing four-port switches that enable you to quickly add ports anywhere on your Ethernet network. They’re designed as part of our Media Converter Switch family and are available in the same robust chassis choices to fit environments ranging from comfortable offices to demanding outdoor installations. You can also choose from a wide range of power supplies and mounting options.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

General
Altitude	-200 to 13,000 ft. (-60.9 to 3962.4 m)
CE Approval	Yes
Connectors	(4) RJ-45
Enclosure	Steel
Humidity	5–95%, noncondensing
Indicators	(2) Power, (8) 10/100, (8) LK/ACT
MAC Addresses	2K
Power	Standard 115-VAC models: 115-VAC, 60-Hz external power supply; Standard 240-VAC models: 240-VAC, 50-Hz external power supply with IEC power connector; Hardened and Extreme AC models: 100–240-VAC, 47–63-Hz external power supply; 12-VDC models: Internal terminal block for 12-VDC power plus jack for AC power supply (not included); 24-VDC models: Internal terminal block for 24-VDC power plus jack for AC power supply (not included); 48-VDC models: Internal terminal block for 48-VDC power plus jack for AC power supply (not included)
Size	3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature Rating	All models: Storage: -40 to +185° F (-40 to +85° C); Standard models: Operating: 32 to 104° F (0 to 40° C); Hardened models: Long-term operating: -13 to +140° F (-25 to +60° C), Short-term operating: -40 to +185° F (-40 to 85° C), Cold start to -4° F (-20° C); Extreme models: Long-term operating: -40 to +167° F (-40 to +75° C), Short-term operating: -58 to +212° F (-50 to +100° C), Cold start to -40° F (-40° C)
Weight	Switch: 0.3 lb. (0.1 kg); Standard and Hardened Power Supplies: 0.4 lb. (0.2 kg); Extreme Power Supplies: 0.5 lb. (0.2 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
Altitude	-200 to 13,000 ft. (-60.9 to 3962.4 m)
CE Approval	Yes
Connectors	(4) RJ-45
Enclosure	Steel
Humidity	5–95%, noncondensing
Indicators	(2) Power, (8) 10/100, (8) LK/ACT
MAC Addresses	2K
Power	Standard 115-VAC models: 115-VAC, 60-Hz external power supply; Standard 240-VAC models: 240-VAC, 50-Hz external power supply with IEC power connector; Hardened and Extreme AC models: 100–240-VAC, 47–63-Hz external power supply; 12-VDC models: Internal terminal block for 12-VDC power plus jack for AC power supply (not included); 24-VDC models: Internal terminal block for 24-VDC power plus jack for AC power supply (not included); 48-VDC models: Internal terminal block for 48-VDC power plus jack for AC power supply (not included)
Size	3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature Rating	All models: Storage: -40 to +185° F (-40 to +85° C); Standard models: Operating: 32 to 104° F (0 to 40° C); Hardened models: Long-term operating: -13 to +140° F (-25 to +60° C), Short-term operating: -40 to +185° F (-40 to 85° C), Cold start to -4° F (-20° C); Extreme models: Long-term operating: -40 to +167° F (-40 to +75° C), Short-term operating: -58 to +212° F (-50 to +100° C), Cold start to -40° F (-40° C)
Weight	Switch: 0.3 lb. (0.1 kg); Standard and Hardened Power Supplies: 0.4 lb. (0.2 kg); Extreme Power Supplies: 0.5 lb. (0.2 kg)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
