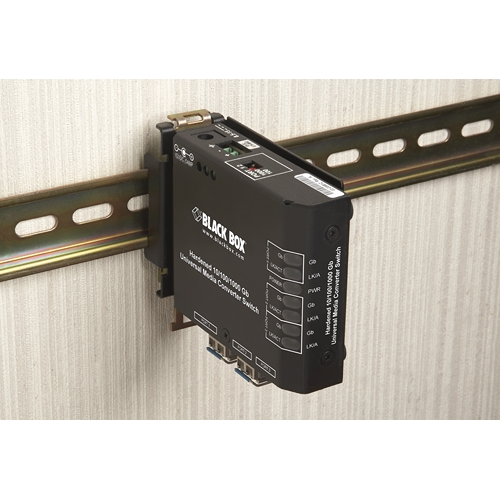

Hardened Heavy-Duty Edge Switch, (2) SFP + (1) Copper Port, 24-VDC, DIN Rail

For industrial environments.
Features two SFP ports and one copper port to expand your network.
Tough steel case.
The RJ-45 port supports autonegotiation, so you can easily attach any 10-, 100-, or 1000-Mbps device.
Supports both half- and full-duplex operation.
Internal screw terminals for 24-VDC power plus a DC power jack.
Other power options are also available.
Includes a DIN rail bracket

Two sets of LEDs enable you to see status information from the front, top, or side.
Supports VLAN tagging and spanning tree passthrough.
Includes Link-Loss-Learn (LLL) feature for fast network recovery

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Altitude	-200 to 50,000 ft. (-60.9 to 15,000 m)
Enclosure	Steel
Humidity	5–95%, noncondensing
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q, IEEE 802.3ab
Temperature Rating	Storage: -40 to +185° F (-40 to +85° C); Long-term operating: -13 to +140° F (-25 to +60° C); Short-term operating: -40 to +185° F (-40 to +85° C); Cold start to -4° F (-20° C)
CE Approval	Yes
RoHS	Yes
Connectors	(2) SFP, (1) RJ-45
Indicators	LEDs: Per Unit: (2) Power; Per SFP Port: (2) LK/ACT, (2) F/H; Per Copper Port: (2) 10/100/1000
Power	24-VDC with internal screw terminal and/or DC power jack
Size	3.6"H x 3"W x 1.7"D (9.2 x 7.6 x 4.3 cm)
Weight	0.4 lb. (0.2 kg)

Altitude	-200 to 50,000 ft. (-60.9 to 15,000 m)
Enclosure	Steel
Humidity	5–95%, noncondensing
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1p/q, IEEE 802.3ab
Temperature Rating	Storage: -40 to +185° F (-40 to +85° C); Long-term operating: -13 to +140° F (-25 to +60° C); Short-term operating: -40 to +185° F (-40 to +85° C); Cold start to -4° F (-20° C)
CE Approval	Yes
RoHS	Yes
Connectors	(2) SFP, (1) RJ-45
Indicators	LEDs: Per Unit: (2) Power; Per SFP Port: (2) LK/ACT, (2) F/H; Per Copper Port: (2) 10/100/1000
Power	24-VDC with internal screw terminal and/or DC power jack
Size	3.6"H x 3"W x 1.7"D (9.2 x 7.6 x 4.3 cm)
Weight	0.4 lb. (0.2 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
