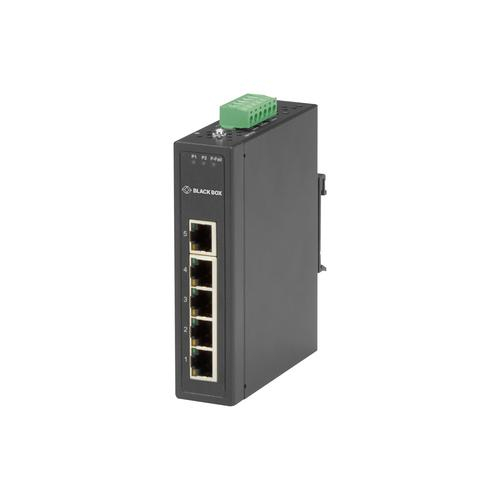

BlackBox, LBH3050A, Industrial 10/100-Mbps Ethernet Switch - Unmanaged, Extreme Temperature, 5-Port
Redundant power
The switch features 12–48 VDC redundant power, which is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable Fuse. The former tolerates reverse power wiring while the later protects the switch from overload currents.
Alarm alerts
Each port has two LEDs to show link and collision status. The switch also has a P-Fail LED which, in the event of a power failure, will activate the alarm to notify administrators.
Easy to set up.
The switch is literally plug-and-play. All ports are auto sensing for speed and duplex, adjusting to the connected device automatically. They also feature Auto MDI/MDI-X, eliminating the need for crossover cables.
Ideal for use in harsh environments, the switch is ideal for:
- Security/surveillance to backhaul IP camera data
- Building automation and HVAC control
- M2M communications with remote stations in oil/gas facilities
- Communications networks for defense and military applications
- Factory automation and machine control
Features:
- Features four 10/100-Mbps switch ports and one 10/100/100-Mbps uplink port.
- Withstands extreme temperatures between -40 and +167º F (-40 to +75º C) and has an IP 30 enclosure.
- Supports redundant 12-48 VDC input power and a P-Fail relay.
- Ideal for security and surveillance, building automation, oil/gas facilities, military applications and factories.
- Features broadcast storm protection.
- Mounts on a DIN rail or the wall.
- Includes panel mount kit.
