Extreme PoE PSE Switch, (4) 10/100 RJ-45, (2) Multimode SC, AC Powered
Quick Facts
- Features four 10-/100-Mbps RJ-45 ports plus two multimode fiber ports.
- All four RJ-45 ports support 802.3af PoE.
- Extends the network up to 2 kilometers (1.2 mi.) over multimode fiber.
- Extended temperature range of -40 to +167° F (-40 to +75° C).
- Universal 100-250-VAC power supply.
- Includes Link-Loss-Learn (LLL) for self-healing LAN structures.
Further Details
Extreme PoE PSE Switches from Black Box power remote PoE devices such as security cameras and traffic signals in extreme environments with uncontrolled temperatures. The switches can even be used outdoors with protection from rainfall and standing water. Rugged metal cases serve as a heat sink to dissipate heat, giving these switches a wide temperature range of -40 to +167° F (-40 to +75° C). Plus, the cases are sealed to resist contaminants such as dust, dirt, moisture, smoke, and insects.
These capable industrial switches are available with six 10-/100-Mbps copper ports, with five 10-/100-Mbps copper ports plus a 100-Mbps fiber uplink port, or with four 10-/100-Mbps copper ports plus two 100-Mbps fiber ports. Fiber ports are available with a variety of connectors, in single- or multimode, and with ranges of up to 20 kilometers. The switches provide 802.3af PoE power for up to four PoE PD devices on four RJ-45 ports.

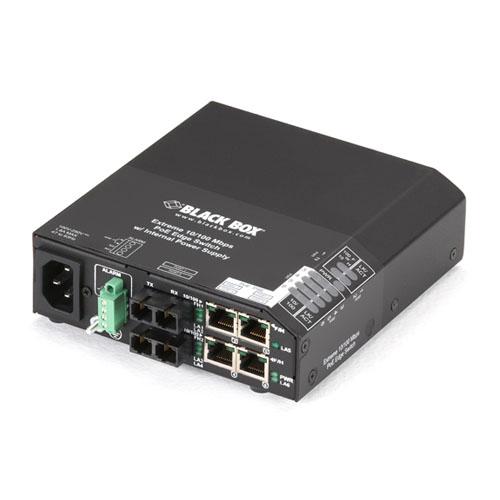

The switch featured here has four autosensing 10-/100-Mbps copper Ethernet ports-all of which are PoE PSE ports-and two multimode fiber ports that support distances of up to 2 kilometers (1.2 mi.). It's powered by an integral 100-250-VAC AC power supply. The switch comes with clips for panel mounting. For DIN rail mounting, order the DIN Rail Mounting Bracket (DIN-RAIL MC2).
