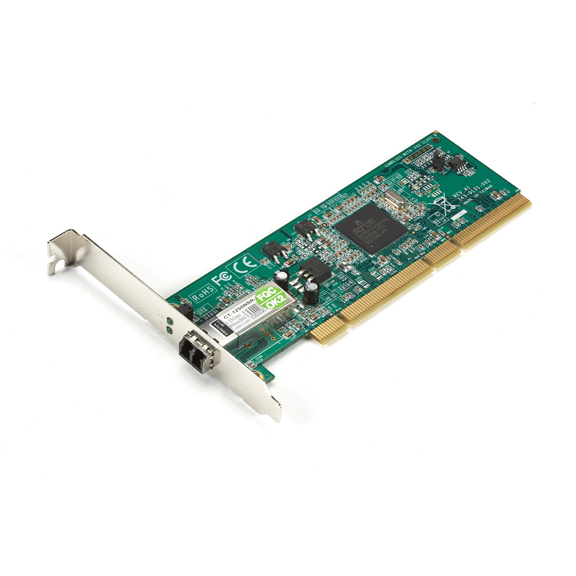

BlackBox LH1660C-LC 1000BASE-SX, PCI Fiber Adapter

BlackBox, LH1660C-LC, 1000BASE-SX, 64-/32-Bit PCI Multimode Fiber Adapter with LC Connector

PCI Fiber Adapter, 1000BASE-SX, 64-/32-Bit, Multimode, LC. Bring fiber-based Gigabit Ethernet to the desktop.

Quick Facts

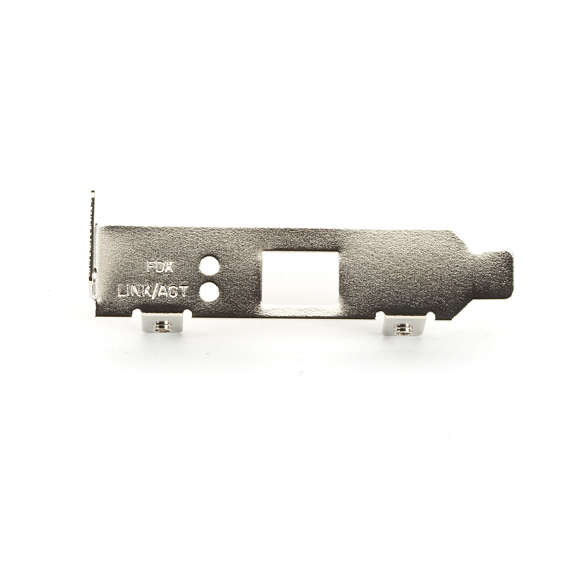

• Includes low-profile and standard profile PC brackets.
• A high performance PCI card for adding a workstation to a Gigabit fiber optic network.
• Fully complies with all IEEE 802.3z and 1000BASE-SX standards.
• Provides up to 2000-Mbps full-duplex bandwidth capacity. Great for linking to high-end servers.

Further Details

• Installs easily in a 64-/32-bit PCI bus (complies with the PCI 2.2 interface standard).
• High-level VLAN filtering packet processing for improved performance, a flexible configuration, and secure networking.
• Supports on-board screening of VLAN tagged Ethernet frames.
• Troubleshoot, and verify link and full-duplex status using LED indicators on the bracket.
• Supports IEEE 802.3x full-duplex flow control for better network performance.
• Offers jumbo frame support for packet-heavy network traffic.
• Supports 802.3ad Link Aggregate Control Protocol (LACP). Trunk multiple NICs together for more bandwidth.
• On-board verification of IP headers and TCP/UDP checksums for received data.
• Also enables you to set up on-board screening of VLAN-tagged Ethernet frames.
• Alert Standard Format (ASF) support for a standards-based way to fix PC problems remotely.
• Ideal for electronically noisy areas and secure government networks.
• Equipped with an LC multimode connector.
• RoHS compliant.
