Order MD940A-F by BlackBox ST to DB25 Female Fiber Driver

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

Options and Related Products

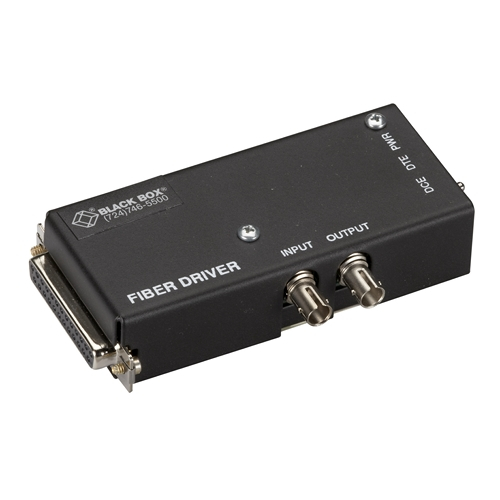

Fiber Driver, ST to DB25 Female. Send RS-232 data across interference-free optical links with these high-performance drivers.

Quick Facts

Further Details

Autosensing 110-220-VAC power supply ensures reliability and continuous transmission.
A range select feature compensates for coupled power variations.
Switch-selectable DTE/DCE option. Set to perform like a DTE so it can communicate with another DCE device. No special cables are needed.
Support RS-232 async, bidirectional transmission.
Use with multimode fiber cable.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Approvals	CE
Data Format	Asynchronous, bidirectional
Data Rate	Transparent up to 76.8 kbps
Distance	Dependent on type of multimode cable, power budget, and loss/km; preset ranges
Fiber Cable	850-nm multimode
Flow Control	X-ON/X-OFF
Operation	Full-duplex
Interface	RS-232 (DCE or DTE switch selectable)
Connectors	(2) ST; (1) DB25 M or F
Power	5 VDC @ 600 mA; External: 110-220 VAC, 50-60 Hz, autosensing
Dimensions	1"H x 2.7"W x 4.2"D (2.5 x 6.9 x 10.7 cm)
Weight	1.4 lb. (0.6 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Approvals	CE
Data Format	Asynchronous, bidirectional
Data Rate	Transparent up to 76.8 kbps
Distance	Dependent on type of multimode cable, power budget, and loss/km; preset ranges
Fiber Cable	850-nm multimode
Flow Control	X-ON/X-OFF
Operation	Full-duplex
Interface	RS-232 (DCE or DTE switch selectable)
Connectors	(2) ST; (1) DB25 M or F
Power	5 VDC @ 600 mA; External: 110-220 VAC, 50-60 Hz, autosensing
Dimensions	1"H x 2.7"W x 4.2"D (2.5 x 6.9 x 10.7 cm)
Weight	1.4 lb. (0.6 kg)

Note: Please read description carefully. Do not base your order on the picture presented.
