Key Characteristics |
Trade Name | Code Reader™ |
Brand Name | Code Corporation |
Country of Origin | Malaysia |
HTS Code (Harmonized Tariff Schedule) | 8471.60.8000 |
ECCN (Export Commodity Control Number) | EAR99 |
Dimensions |
Dimensions | 2.5 in H x 2.5 in W x 0.75 in D |
Height | 2.5 in |
Width | 2.5 in |
Depth | 0.75 in |
Cable Length | 6 ft |
Weight | 1.9 oz |
Material Characteristics |
Color | Dark Gray |
Product Features |
Application | Asset Tracking, General Identification |
Connectivity Options | Cabled |
Memory | 1 MB NOR Flash, 16MB RAM |
Scanner Model | CR1100 |
Battery Type | No Battery |
Decode Capability - 1D | BC412, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, GS1 DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN |
Rotational Tolerance | +/- 180° |
Sensor | CMOS 1.2 Megapixel |
Field of View | High Density Field: 30° Horizontal by 20° Vertical, Wide Field: 50° Horizontal by 33.5° Vertical |
Focal Point | Approximately 100 mm |
Optical Resolution | High Density Field: 960 x 640, Wide Field: 960 x 640 |
Pitch | ± 65° (from front to back) |
Skew | ± 60° from plane parallel to symbol (side-to-side) |
Target Beam | Single Blue targeting bar (470nm) |
Image Output Options | JPEG, PGM |
Decode Capability - 1D Stacked | Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 |
Decode Capability - 2D | Aztec Code, Data Matrix, Data Matrix Rectangular Ext'n, GoCode® (prorietary--add'l license req'd), Grid Matrix, HanXin Code, Micro QR Code, QR Code, QR Model 1 |
Decode Capability - Postal | Australian Post, Canada Post, Itelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Post-Net, UK Royal Mail, UPU ID-tags |
Field Selection | High Density or Wide Field |
Advanced Data Editing | JavaScript |
Symbol Contrast | 15% minimum reflectance difference |
Ambient Light Immunity | Sunlight: Up to 9,000ft-candles/96,890 lux |
Charging Station Communication Interfaces for Barcode Scanners | RS232, USB 2.0 (generic HID, HID keyboard, virtual com port) |
Reader/Scanner Unit Communication | RS232, USB 2.0 (Generic HID, HID keyboard, Virtual COM port) |
Printing Specifications |
Device Drop Test and Durability | Resistant to 6-foot drops |
What's Included |

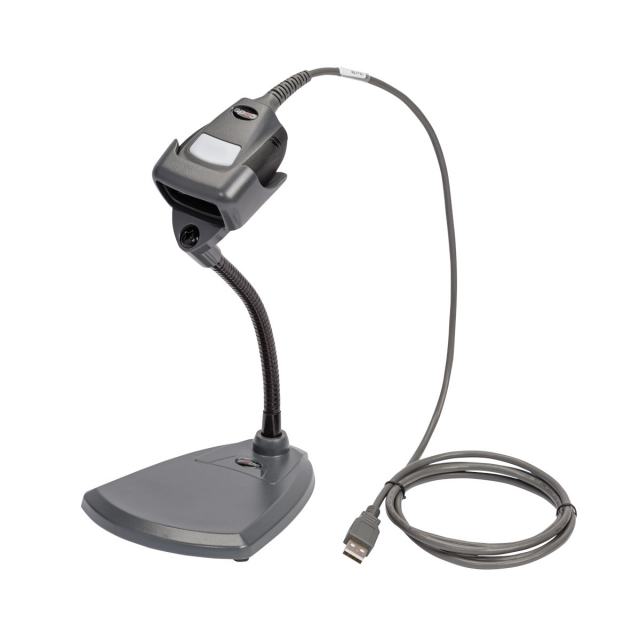

Includes | (1) CR1100, (1) Stand, (1) USB Cable |
Compliance |
UNSPSC | 43211701 |
RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
