Brady, HX-125-2-YL-J-2, 117238 Yellow 0.125" Dia. x 2" PermaSleeve HX Heat Shrink Wire Marking Sleeve, 3" Core

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

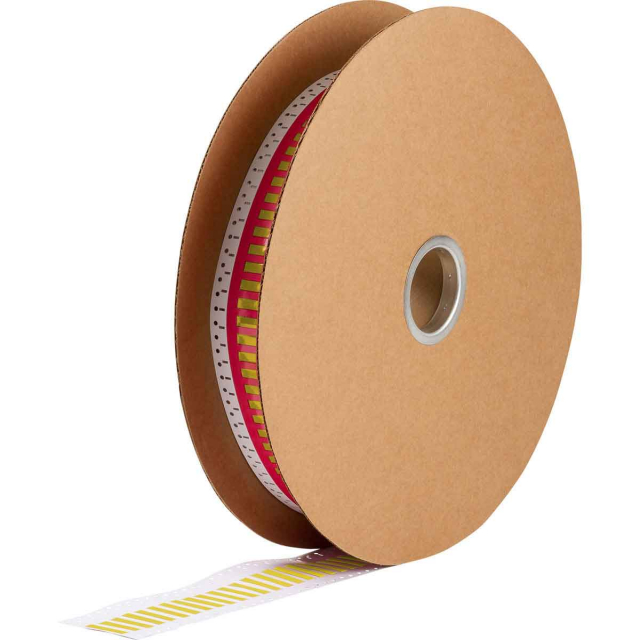

Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002;
Tested per ASTM E162 and ASTM E662
Operating temperature of -40°F to 248°F (-40°C to 120°C)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Unit of Measure	Roll of 20000 pcs
Quantity per Roll	20000
Material Number	B-7642
Diameter as Supplied	0.125 in
Dimensions	0.235 in H
Maximum Service Temperature °F	248 °F
Maximum Wire Diameter	0.11 in
Maximum Wire Gauge	16 AWG
Minimum Service Temperature °F	-40 °F
Minimum Wire Diameter	0.062 in
Minimum Wire Gauge	20 AWG
Printable Sides	Single-Side Printable
Recovered Diameter	0.062 in
Roll Width	2 in
Shrink Ratio	2:1
Sleeve Size	0.125 in Dia x 1 in W
Sleeve Size(m)	3.2 mm Dia x 25.4 mm W
Sleeve Slits	Yes
Sleeve Width	1 in
Trade Name	PermaSleeve
Applications	Cable and Wire Marking
Color	Yellow
For Use with Printer	BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media Format	Roll
Material	Polyolefin
Material Properties	Heat-Shrinkable
Print Technology	Thermal Transfer
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
Suggested Ribbon Series	R4300, R6000, R6400, R6600
Label Properties	Heat Shrink Sleeves

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer www.P65Warnings.ca.gov

Product Details

Unit of Measure	Roll of 20000 pcs
Quantity per Roll	20000
Material Number	B-7642
Diameter as Supplied	0.125 in
Dimensions	0.235 in H
Maximum Service Temperature °F	248 °F
Maximum Wire Diameter	0.11 in
Maximum Wire Gauge	16 AWG
Minimum Service Temperature °F	-40 °F
Minimum Wire Diameter	0.062 in
Minimum Wire Gauge	20 AWG
Printable Sides	Single-Side Printable
Recovered Diameter	0.062 in
Roll Width	2 in
Shrink Ratio	2:1
Sleeve Size	0.125 in Dia x 1 in W
Sleeve Size(m)	3.2 mm Dia x 25.4 mm W
Sleeve Slits	Yes
Sleeve Width	1 in
Trade Name	PermaSleeve
Applications	Cable and Wire Marking
Color	Yellow
For Use with Printer	BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer
Label/Media Format	Roll
Material	Polyolefin
Material Properties	Heat-Shrinkable
Print Technology	Thermal Transfer
Resistance Properties	Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
Suggested Ribbon Series	R4300, R6000, R6400, R6600
Label Properties	Heat Shrink Sleeves

Note

Note: Please read description carefully. Do not base your order on the picture presented.
