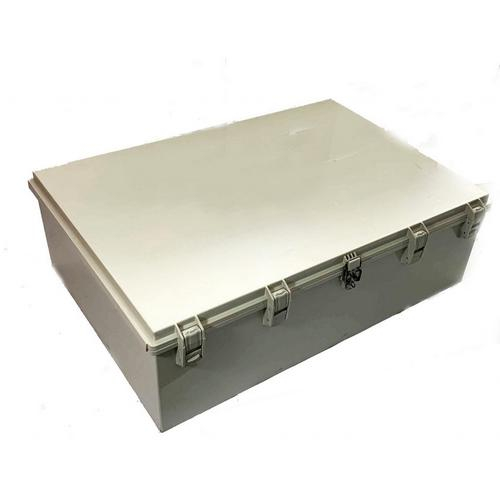

Bud Industries NBG-20010 Large Plastic NEMA Enclosure

Style: Opaque
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Style:
Style: Opaque

Features with all optional accessories:

  • UL listed 508A NEMA 4, 4X
  • Made of polycarbonate+PBT(f1) material, offering high strength and weather resistance
  • Removable door latches using stainless steel latches that provide maximum security and sealing
  • Seals using RMPF poured gasket
  • UL94-V0 (1.5 mm) and 5VA (3 mm) flammability rating
  • Service temperature -20 to 70 degrees C
  • UV resistant material
  • Suitable for both indoor and outdoor applications
  • Optional 0.06-inch aluminum mounting plate

These gasketed extra-large plastic enclosures are UL listed for Type 4 and 4x. They meet NEMA 1, 2, 4, 4x and IEC529-IP66 requirements, which allows you to use them with confidence in wet, dirty and corrosive environments.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
External Size L x W x D32.72" x 24.86" x 7.49"
Internal Size L x W x D31.42" x 23.58" x 7.05"
Weight18 lbs
ColorLight Gray
RoHS CertifiedAlways Compliant
NEMA RatingNEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating66
Cover StyleOpaque, Hinged Cover
Latch StyleStainless Steel
Flammability RatingUL94-V0
Type of PlasticPolycarbonate
Door Type of PlasticPolycarbonate
Service Temperature Min-20°C
Service Temperature Max70°C
Hinge LocationLong Side
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
External Size L x W x D32.72" x 24.86" x 7.49"
Internal Size L x W x D31.42" x 23.58" x 7.05"
Weight18 lbs
ColorLight Gray
RoHS CertifiedAlways Compliant
NEMA RatingNEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating66
Cover StyleOpaque, Hinged Cover
Latch StyleStainless Steel
Flammability RatingUL94-V0
Type of PlasticPolycarbonate
Door Type of PlasticPolycarbonate
Service Temperature Min-20°C
Service Temperature Max70°C
Hinge LocationLong Side
Note

Note: Please read description carefully. Do not base your order on the picture presented.
