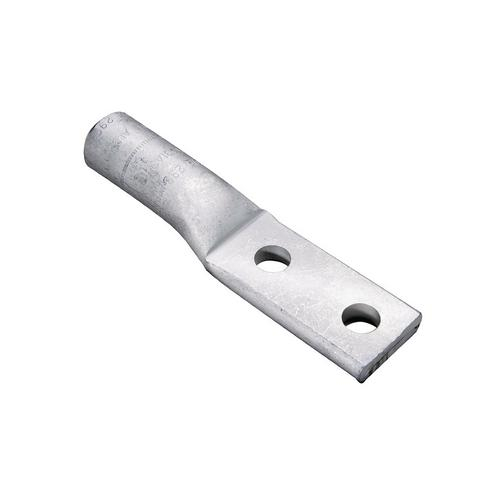

Burndy YA39A7 537001 Al Terminal 750 Kcmil 3/8" Stud Size, (Pack of 10 pcs)

  • Brand Burndy
  • Part # YA39A7
  • Model # 537001
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:
Package Quantity
Pack of 10 pcs

750 kcmil, AL Terminal, Two Hole, 3/8" Stud Size, 1" Hole Spacing, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™, End Cap, UL/CSA, 90°C, Up to 35kV, Yellow Color Code, 936 Die Index

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Color CodeYellow
Connector TypeTerminal
Die Index936
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialAluminum
Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
Trade NameHYLUG
UPC781810033982
UPC 12 Digit7818100339822
Dimension - B Length fraction2-7/16 in
Dimension - B Length inch2.46 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction3/8
Dimension - D inch1.89 in
Dimension - Hole Size inch0.44 in
Dimension - Hole Size mm11 mm
Dimension - L Length Overall mm148 mm
Dimension - Length Overall inch5.81 in
Dimension - N inch0.44 in
Dimension - Outside Diameter inch1.46 in
Dimension - Pad Width inch2.05 in
Dimension - Strip Length inch2 7/8
Dimension - Stud Size fraction3/8"
Dimension - Stud Size inch3/8
Dimension - Thread Size3/8
Dimension - Z inch0.45 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - AL Str Size700 kcmil;715 kcmil;750 kcmil
Conductor - AL Str Size Range700 kcmil - 750 kcmil
Conductor - Copper Str Size700 kcmil;750 kcmil
Conductor - Copper Str Size Range700 kcmil - 750 kcmil
Wire Size750 kcmil
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Color CodeYellow
Connector TypeTerminal
Die Index936
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialAluminum
Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
PlatedY
Plating TypeTin - Electro Plated
Temperature Rating194
Trade NameHYLUG
UPC781810033982
UPC 12 Digit7818100339822
Dimension - B Length fraction2-7/16 in
Dimension - B Length inch2.46 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction3/8
Dimension - D inch1.89 in
Dimension - Hole Size inch0.44 in
Dimension - Hole Size mm11 mm
Dimension - L Length Overall mm148 mm
Dimension - Length Overall inch5.81 in
Dimension - N inch0.44 in
Dimension - Outside Diameter inch1.46 in
Dimension - Pad Width inch2.05 in
Dimension - Strip Length inch2 7/8
Dimension - Stud Size fraction3/8"
Dimension - Stud Size inch3/8
Dimension - Thread Size3/8
Dimension - Z inch0.45 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - AL Str Size700 kcmil;715 kcmil;750 kcmil
Conductor - AL Str Size Range700 kcmil - 750 kcmil
Conductor - Copper Str Size700 kcmil;750 kcmil
Conductor - Copper Str Size Range700 kcmil - 750 kcmil
Wire Size750 kcmil
Note

Note: Please read description carefully. Do not base your order on the picture presented.
