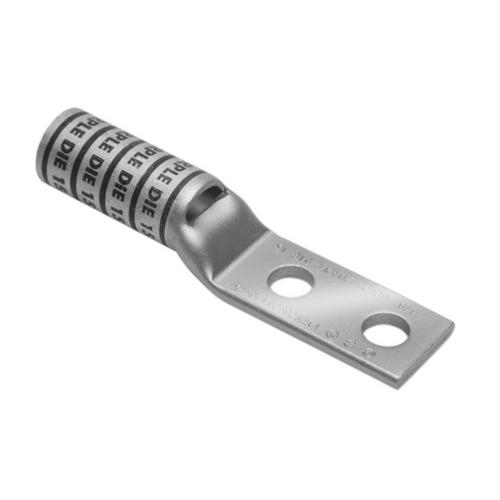

Burndy YAZ382ENT38FX 10042021 Cu Terminal, 2 Hole, (Pack of 20 pcs)

  • Brand Burndy
  • Part # YAZ382ENT38FX
  • Model # 10042021
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:
Package Quantity
Pack of 20 pcs

Burndy, YAZ382ENT38FX, 10042021 Cu Terminal, 2 Hole

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Color CodePink
Connector TypeTerminal
Die IndexL99
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive
Dimension - B Length fraction2-13/16 in
Dimension - B Length inch2.81 in
Dimension - Bolt Hole Size inch0.41 in
Dimension - Bolt Size fraction3/8
Dimension - Diameter Min Size inch2.02 in
Dimension - Hole Size inch0.41 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm145 mm
Dimension - Length Overall inch5.72 in
Dimension - N inch0.50 in
Dimension - Outside Diameter inch1.25 in
Dimension - Pad Width inch1.46 in
Dimension - Strip Length inch2-7/8
Dimension - Z inch0.52 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size535.3 (1325/#24) DLO
Conductor - Copper DLO Size Range535 kcmil
Conductor - Copper Flex G Size500 kcmil
Conductor - Copper Flex G Size Range550 kcmil
Conductor - Copper Flex H Size500 kcmil
Conductor - Copper Flex H Size Range500 / 550 kcmil
Conductor - Copper Flex I Size500 kcmil
Conductor - Copper Flex I Size Range500 / 550 kcmil
Conductor - Copper Flex K Size500 kcmil
Conductor - Copper Flex K Size Range500 kcmil
Conductor - Copper Flex M Size500 kcmil
Conductor - Copper Flex M Size Range500 kcmil
Conductor - Copper Str Size Range500 / 550 kcmil
Conductor - MaterialCopper
Certification - CSA ApprovedYes
Certification - ETLNo
Certification - UL RecognizedNo
Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM
UL ListedYes
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warningWARNING: Cancer www.P65Warnings.ca.gov

Product Details
Color CodePink
Connector TypeTerminal
Die IndexL99
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive
Dimension - B Length fraction2-13/16 in
Dimension - B Length inch2.81 in
Dimension - Bolt Hole Size inch0.41 in
Dimension - Bolt Size fraction3/8
Dimension - Diameter Min Size inch2.02 in
Dimension - Hole Size inch0.41 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm145 mm
Dimension - Length Overall inch5.72 in
Dimension - N inch0.50 in
Dimension - Outside Diameter inch1.25 in
Dimension - Pad Width inch1.46 in
Dimension - Strip Length inch2-7/8
Dimension - Z inch0.52 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size535.3 (1325/#24) DLO
Conductor - Copper DLO Size Range535 kcmil
Conductor - Copper Flex G Size500 kcmil
Conductor - Copper Flex G Size Range550 kcmil
Conductor - Copper Flex H Size500 kcmil
Conductor - Copper Flex H Size Range500 / 550 kcmil
Conductor - Copper Flex I Size500 kcmil
Conductor - Copper Flex I Size Range500 / 550 kcmil
Conductor - Copper Flex K Size500 kcmil
Conductor - Copper Flex K Size Range500 kcmil
Conductor - Copper Flex M Size500 kcmil
Conductor - Copper Flex M Size Range500 kcmil
Conductor - Copper Str Size Range500 / 550 kcmil
Conductor - MaterialCopper
Certification - CSA ApprovedYes
Certification - ETLNo
Certification - UL RecognizedNo
Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM
UL ListedYes
