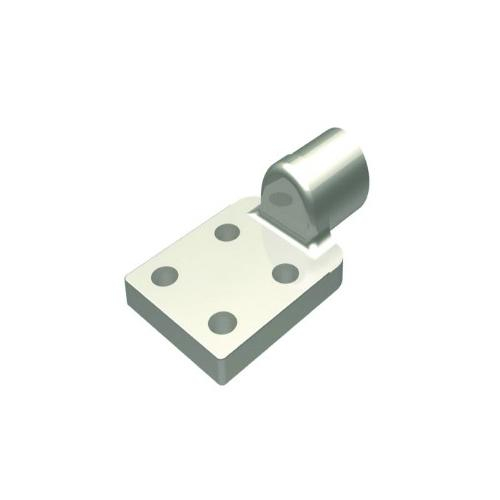

Burndy, YCAB394N, 185124 Copper Compression Lug, 4 Hole, 750 Kcmil

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Connector Type	Terminal
Die Index	627
Oxide Inhibitor Type	Penetrox A
Physical Attribute - Number of Crimps Required	2
Physical Attribute - Number of Holes	4
Plated	N
Plating Type	Unplated
Prefilled Oxide Inhibitor	Y
Trade Name	HYLUG™
Dimension - B Length inch	3 in
Dimension - F Width Center to Center inch	1.75 in
Dimension - Hole Size fraction	14/25 in
Dimension - Hole Size inch	0.56 in
Dimension - Hole Size mm	14 mm
Dimension - L Length Overall mm	217 mm
Dimension - Length Overall inch	8.53 in
Dimension - N inch	0.62 in
Dimension - Outside Diameter inch	1.7 in
Dimension - Pad Width inch	3 in
Dimension - Strip Length inch	3 1/16
Dimension - Stud Size inch	33/64
Dimension - Z inch	0.63 in
Physical Attribute - Tongue Angle	Straight
Conductor - Copper Str Size	750 kcmil
Conductor - Copper Str Size Range	750 kcmil
Certification - CSA Approved	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	EX
UL Listed	No

Notes
