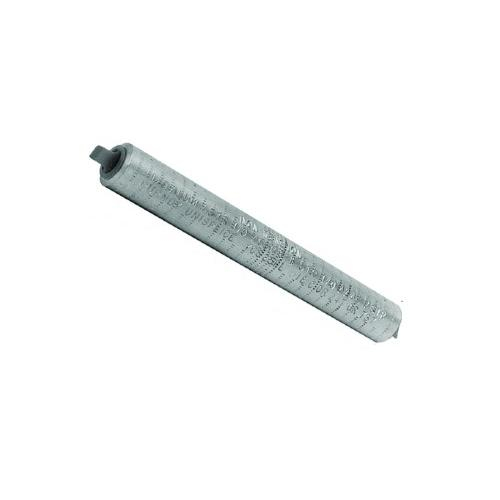

Burndy, YCS341RL, 193251 Aluminum Sleeve with Staked Cable Stop, 397.5 - 336.4 Kcmil

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Connector Type	Splice
Die Index	327
Item Type	4D
Material	Aluminum
Plated	N
Plating Type	Unplated
Prefilled Oxide Inhibitor	Y
Trade Name	UNISPLICE™
Dimension - L Length Overall mm	141 mm
Dimension - Length Overall inch	5.56 in
Dimension - Outside Diameter inch	1.13 in
Conductor - ACSR Str Size	397.5 Kcmil, 336.4 kcmil
Conductor - AL Str Size	400 kcmil
Certification - CSA Approved	No
Certification - UL Recognized	No
Certification - cULus	No
Standards - RoHS Compliance Status	CM
UL Listed	No

Notes
