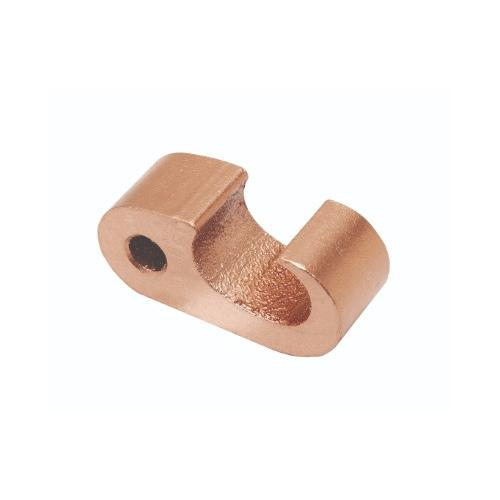

Burndy, YGHP29C2, Compression Ground Rod Connector, 1/0 AWG - 250 Kcmil Run / #4 - #2 AWG Tap

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
Connector Type	Tap
Die Index	997
Item Type	3A
Material	Copper
Oxide Inhibitor Type	Penetrox E
Physical Attribute - Number of Crimps Required	1
Plated	N
Plating Type	Unplated
Prefilled Oxide Inhibitor	Y
Type	Taps
Dimensions
Dimension - B Length fraction	3/4 in
Dimension - B Length inch	0.75 in
Conductor Related
Conductor - Copper Solid Tap	4 AWG
Conductor - Copper Solid Tap Range	4 AWG
Conductor - Copper Str Run	1/0; 2/0 AWG; 3/0 AWG; 4/0 AWG; 250 kcmil
Conductor - Copper Str Run Range	1/0 -250 kcmil
Conductor - Copper Str Tap	4 AWG; 3 AWG; 2 AWG
Conductor - Copper Str Tap Range	4 AWG-2 AWG
Conductor - Rebar Run	3; 4
Conductor - Rebar Run Range	3-4
Conductor - Rod Run	1/2 in; 5/8 in
Conductor - Rod Run Range	1/2 in-5/8 in
Certifications and Compliance
Certification - CSA Approved	Yes
Certification - ETL	No
Certification - UL Listed Direct Burial	Yes
Certification - UL Recognized	No
Certification - cULus	No
Industry Standard(s)	UL467; UL486A; CSA Certified; DirectBurial
Standards - RoHS Compliance Status	CM
UL Listed	Yes

Notes
