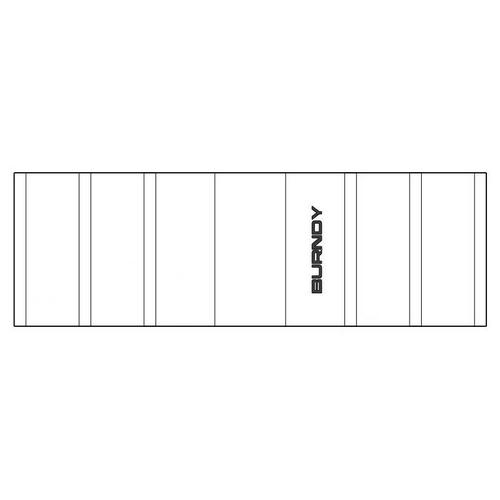

Burndy YSU25R2W 168339 Aluminum Heavy-Walled Tube, 1/0 - #4 AWG, (Pack of 100 pcs)

Conductor Size: 1/0 - #4 AWG
  • Brand Burndy
  • Part # YSU25R2W
  • Model # 168339
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:
Package Quantity
Pack of 100 pcs

Options and Related Products

Conductor Size:
Conductor Size: 1/0 - #4 AWG

Burndy, YSU25R2W, 168339 Aluminum Heavy-Walled Tube, 1/0 - #4 AWG

Heavy-walled aluminum tubing with solid barrier minimizes galvanic corrosion of conductors. Accommodates neutral strands of Type SE Service Entrance conductor as well as other conductors. Installed with standard tooling. Pre-filled with PENE TROX™ joint compound and Stripsealed to limit oxidation and to increase the life of the connection.

Features

  • Accommodates 1/0 standard aluminum and copper concentric, compressed and compact conductors.
  • Accommodates compact conductors.
  • For faster installations use BURNDY® PATRIOT® family of battery tools.
  • Material: Aluminium (uninsulated)
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Color Code - Side AYellow
Color Code - Side BOrange
Die Index243;BG or 5/8
MaterialAluminum
PlatedY
Plating TypeTin - Hot Dipped
Prefilled Oxide InhibitorY
Trade NameLINKIT ™
Dimension - B Length inch0.87 in
Dimension - L Length Overall mm51 mm
Dimension - Length Overall inch2 in
Dimension - Outside Diameter inch0.65 in
Conductor - ACSR Str Size A1/0 (6/1) Raven AWG
Conductor - ACSR Str Size B4 (6/1) Swan AWG;4 (7/1) Swanate AWG
Conductor - ACSR Str Size B Range4 (6/1) Swan AWG-4 (7/1) Swanate AWG
Conductor - AL Str Size A1/0 AWG
Conductor - AL Str Size B3 AWG, 4 AWG
Conductor - AL Str Size B Range3 AWG-4 AWG
Conductor - Copper Solid Size B2 AWG
Conductor - Copper Str Size A1/0 AWG
Conductor - Copper Str Size B3 AWG, 4 AWG
Conductor - Copper Str Size B Range3 AWG-4 AWG
Certification - CSA ApprovedNo
Certification - UL RecognizedNo
Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedNo
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Color Code - Side AYellow
Color Code - Side BOrange
Die Index243;BG or 5/8
MaterialAluminum
PlatedY
Plating TypeTin - Hot Dipped
Prefilled Oxide InhibitorY
Trade NameLINKIT ™
Dimension - B Length inch0.87 in
Dimension - L Length Overall mm51 mm
Dimension - Length Overall inch2 in
Dimension - Outside Diameter inch0.65 in
Conductor - ACSR Str Size A1/0 (6/1) Raven AWG
Conductor - ACSR Str Size B4 (6/1) Swan AWG;4 (7/1) Swanate AWG
Conductor - ACSR Str Size B Range4 (6/1) Swan AWG-4 (7/1) Swanate AWG
Conductor - AL Str Size A1/0 AWG
Conductor - AL Str Size B3 AWG, 4 AWG
Conductor - AL Str Size B Range3 AWG-4 AWG
Conductor - Copper Solid Size B2 AWG
Conductor - Copper Str Size A1/0 AWG
Conductor - Copper Str Size B3 AWG, 4 AWG
Conductor - Copper Str Size B Range3 AWG-4 AWG
Certification - CSA ApprovedNo
Certification - UL RecognizedNo
Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedNo
Note

Note: Please read description carefully. Do not base your order on the picture presented.
