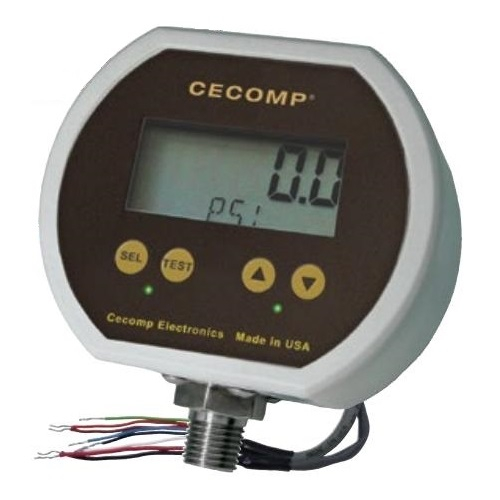

Cecomp Electronics Series F16ADANBL Programmable Digital Pressure Gauge

Features:

• ±0.25% Test Gauge Accuracy
• 316L Stainless Steel Wetted Parts
• ADA: Dual Programmable Alarms
• Low Voltage Powered

Cecomp Digital Pressure Gauge with Programmable Alarms Series F16ADANBL. Programmable dual form C (SPDT) relay contacts for HI/LO, HI/HI, LO/LO, normal or reverse acting with 1% deadband, or adjustable trip and reset points for each relay, manual or auto acknowledge. 1A/24VDC, 0.5A/115VAC, non-inductive 120 milliseconds typical response time. NEMA 4X ABS/polycarbonate case, rear gasket, polycarbonate label. 4 readings per second nominal display update rate. Accuracy includes linearity, hysteresis, repeatability. 1/4" NPT male fitting, all wetted parts are 316L stainless steel. Red LED backlight on when gauge is on Alarm 1 and Alarm 2 LCD indicators and bi-color (red/green) LEDs.

For more information, please see Data Sheet

Meantime you may review Cecomp bestsellers or review the list of all available Cecomp products in the table below.

You may request a quote for a specific product or just contact us at any time

For more products see Product List
