Options and Related Products

Size:: Size: 11.5 x 195mm

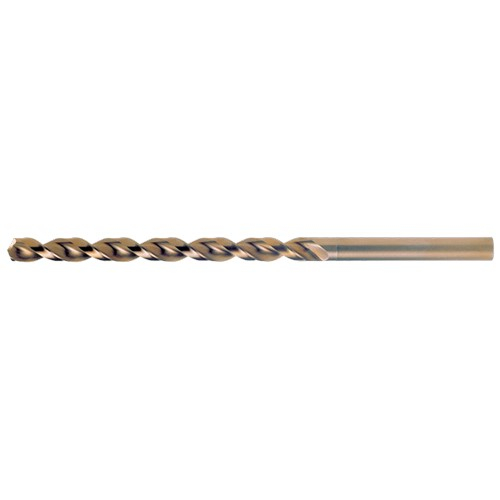

Cleveland, C16830, Style 2575 11.5 x 195mm Wide Land Parabolic Taper Length Straw Oxide Drill Bit

Applications:

Low Carbon Steel
Medium Carbon Steel
High Carbon Steel
Stainless Steel
Cast Iron
Tool Steel
Aluminum
Brass
Plastic
Nickel Alloys

Features:

ANSI Sizes
DIN 338
High Performance
M42 Cobalt Substrate
Straw Oxide

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	2575
Set	No
Specifications
Drill Construction	Wide Land Parabolic
Drill Size System	Metric
Drill Style	Taper Length Drill
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Material	HSS-CO 8% (M42)
Measurement System	Metric
Number of Flutes	2
Point Angle	135°
Point Style	Split
Shank Configuration	Straight
Surface Condition	Straw / Gold Oxide
Tool Size	11.50mm
Dimensions
Diameter	0.4528"
Diameter (Metric)	11.50mm
Flute Length	5.0394"
Flute Length (Metric)	128.00mm
Overall Length	7.6770"
Overall Length (Metric)	195.00mm
Shank Size	0.4528"
Shank Size (Metric)	11.50mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
List Style Number	2575
Set	No
Specifications
Drill Construction	Wide Land Parabolic
Drill Size System	Metric
Drill Style	Taper Length Drill
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Material	HSS-CO 8% (M42)
Measurement System	Metric
Number of Flutes	2
Point Angle	135°
Point Style	Split
Shank Configuration	Straight
Surface Condition	Straw / Gold Oxide
Tool Size	11.50mm
Dimensions
Diameter	0.4528"
Diameter (Metric)	11.50mm
Flute Length	5.0394"
Flute Length (Metric)	128.00mm
Overall Length	7.6770"
Overall Length (Metric)	195.00mm
Shank Size	0.4528"
Shank Size (Metric)	11.50mm

Note: Please read description carefully. Do not base your order on the picture presented.
