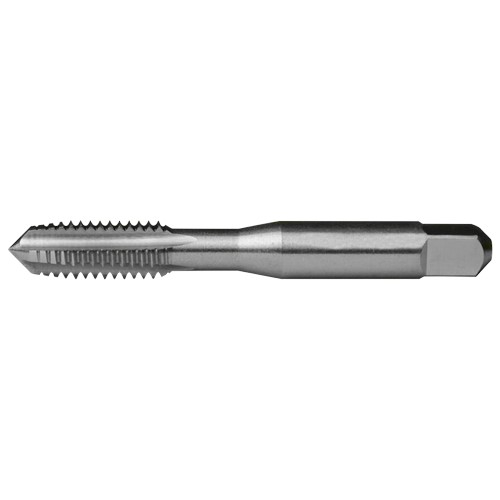

Cleveland, C54116, Style 1002 0.099 x 1.8125" 3 Flutes High Speed Steel Bright Plug Hand Tap

Applications:

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1002
Set	No
Thread Specifications
Thread Creation	Thread Cutting
Thread Form	UNC
Thread Length	0.5000"
Thread Length (Metric)	12.70mm
Thread Pitch	48
Thread Size	#3
Thread Tolerance	2B
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	3
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302A
Tap Chamfer	Plug
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H2
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	#3-48 UNC
Dimensions
Diameter	0.0990"
Overall Length	1.8125"
Overall Length (Metric)	46.04mm
Shank Size	0.1410"
Shank Size (Metric)	3.58mm
Shank Square Length	0.1875"
Shank Square Length (Metric)	4.76mm
Shank Square Size	0.1100"
Shank Square Size (Metric)	2.79mm
Application
Depth of Cut	1.5xD
Material Application	K: Cast Iron, P: Steel, N: Non-ferrous Metal, M: Stainless Steel
Operation Type	Blind Hole

Notes
