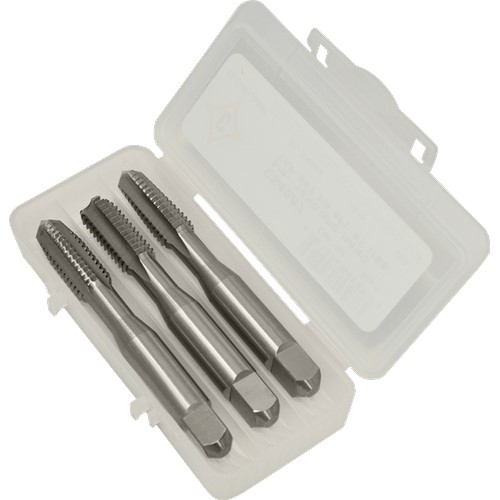

Cleveland, C54656, Style 1004 0.4375x3.1562" 4-Flute H3 H-Limit Thread Size 7/16-14 Bright Hand Tap Set

Applications:

Alloy Steel
Carbon Steel
Free-Mach Stainless
Aluminum

Features:

USCTI 302
General Purpose
HSS Substrate
Bright
Ground Tread
Thru Holes
7-10 Taper
3-5 Plug
2-1/2 - 2 Bottoming

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

General
List Style Number	1004
Set	Yes
Thread Specifications
Thread Form	UNC
Thread Length	0.8800"
Thread Length (Metric)	22.35mm
Thread Pitch	14
Thread Size	7/16"
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302
Tap Chamfer	Taper-Plug-Bottoming
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H3
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	7/16-14 UNC
Set Specifications
Set Case Brand	Rose Plastic®
Set Case Type	UniBox
Set Number of Pieces	3
Set Size Range	7/16-14 UNC
Dimensions
Diameter	0.4375"
Overall Length	3.1600"
Overall Length (Metric)	80.26mm
Shank Size	0.3230"
Shank Size (Metric)	8.20mm
Shank Square Length	0.4062"
Shank Square Length (Metric)	10.32mm
Shank Square Size	0.2420"
Shank Square Size (Metric)	6.15mm
Tap Neck Length	0.5700"

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

General
List Style Number	1004
Set	Yes
Thread Specifications
Thread Form	UNC
Thread Length	0.8800"
Thread Length (Metric)	22.35mm
Thread Pitch	14
Thread Size	7/16"
Specifications
Flute Type	Straight
Hand of Cut	Right
Material	HSS
Measurement System	Imperial
Number of Flutes	4
Shank Configuration	Straight w/ Square
Surface Condition	Bright
Tap Blank Construction	USCTI Table 302
Tap Chamfer	Taper-Plug-Bottoming
Tap Construction	Standard
Tap Ground Threads	Yes
Tap Interrupted Thread	No
Tap Limit	H3
Tap Spiral Point	No
Tap Style	Straight Flute Hand Tap
Tap Truncated Threads	No
Tap Type	Hand Tap
Tool Size	7/16-14 UNC
Set Specifications
Set Case Brand	Rose Plastic®
Set Case Type	UniBox
Set Number of Pieces	3
Set Size Range	7/16-14 UNC
Dimensions
Diameter	0.4375"
Overall Length	3.1600"
Overall Length (Metric)	80.26mm
Shank Size	0.3230"
Shank Size (Metric)	8.20mm
Shank Square Length	0.4062"
Shank Square Length (Metric)	10.32mm
Shank Square Size	0.2420"
Shank Square Size (Metric)	6.15mm
Tap Neck Length	0.5700"

Note: Please read description carefully. Do not base your order on the picture presented.
