Options and Related Products

Length of Cut:: Length of Cut: 0.5"

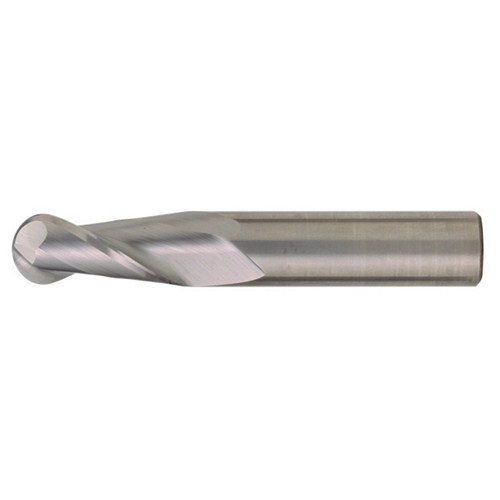

Cleveland, C80922, .125" x .5" Solid Carbide 2-Flute Ball Nose Single End End Mill

Applications

Steels (Carbon Steel, Alloy Steels 1018, 1045, 4140, D-2)
Cast Iron (Grey-Cast Iron & Ductile Iron Class-20, (60-40-18))
Special Alloys (Inconel, Hastelloy, Titanium, etc. Inconel 718, Hastelloy B, 6AI-4V)
Non-Ferrous (Alluminum-6060-T6, 7075, Plastics, Detron, Graphite, Fiberglass)
Machining

Plunging
Slot with Radius
Profile Cutting

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

List Style	CEM-SE-2B
Construction	General Purpose
Material	Solid Carbide
Shank	Straight without Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Ball Nose
Number of Flutes	2
Surface Condition	TiAlN

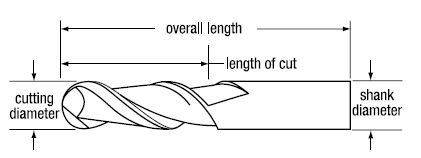

Diameter Fractional	1/8"
Decimal Equivalent	0.1250" / 3.18mm
Shank Diameter	0.1250" / 3.18mm
Length of Cut	0.5000" / 12.70mm
Overall Length	1.5000" / 38.10mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

List Style	CEM-SE-2B
Construction	General Purpose
Material	Solid Carbide
Shank	Straight without Flats
Hand of Spiral Cut	RHS / RHC
Center Cutting	Yes
Double Ended	No
End Style	Ball Nose
Number of Flutes	2
Surface Condition	TiAlN
Diameter Fractional	1/8"
Decimal Equivalent	0.1250" / 3.18mm
Shank Diameter	0.1250" / 3.18mm
Length of Cut	0.5000" / 12.70mm
Overall Length	1.5000" / 38.10mm

Note: Please read description carefully. Do not base your order on the picture presented.
