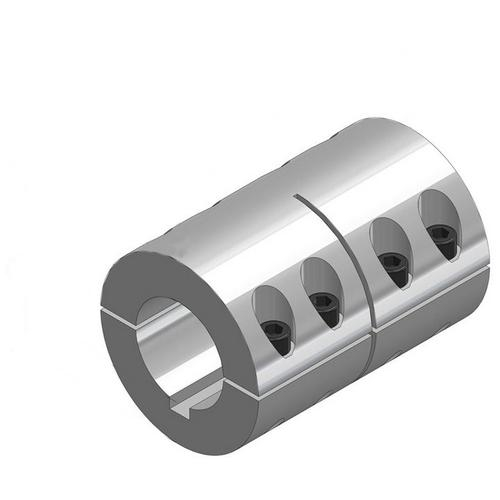

Climax Metal, G2MSCC-35-35SKW, G2MSCC Metric Clamp Coupling, Stainless Steel, 35mm x 35mm, Keyway

Stainless Steel Metric Two-Piece Industry Standard Clamping Coupling with Keyway. High axial load & torque capacity. Does not mar the shaft.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Bore	35 mm
2nd Bore	35 mm
OD	67 mm
Length	95 mm
Style	Two-Piece Clamp
Keyway Size	10 X 5 mm
Material	Stainless Steel, ASTM A582
Finish	Plain
Clamp Screw	Hex Socket Cap Screw, Stainless Steel: M8 X 25
Approximate Weight	38.40 oz

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Bore	35 mm
2nd Bore	35 mm
OD	67 mm
Length	95 mm
Style	Two-Piece Clamp
Keyway Size	10 X 5 mm
Material	Stainless Steel, ASTM A582
Finish	Plain
Clamp Screw	Hex Socket Cap Screw, Stainless Steel: M8 X 25
Approximate Weight	38.40 oz

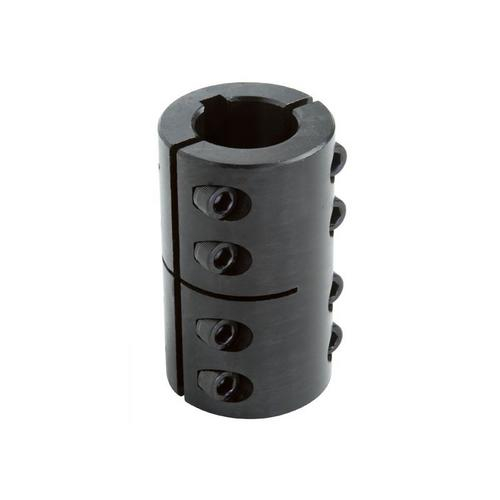

Note: Please read description carefully. Do not base your order on the picture presented.
