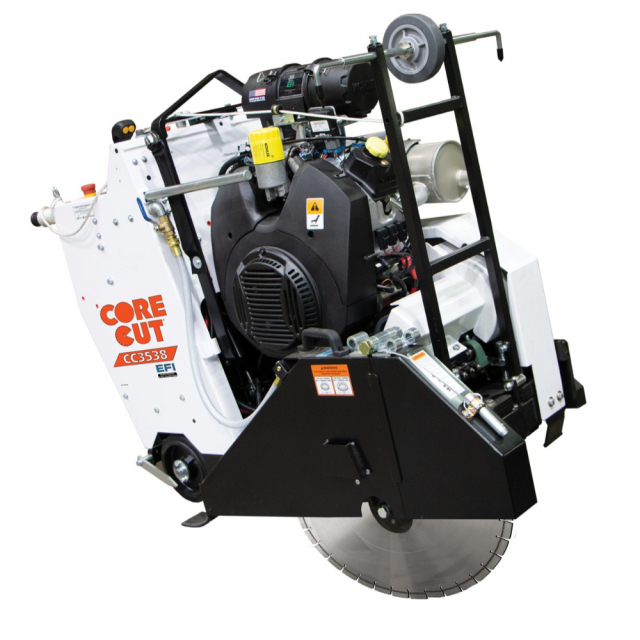

Diamond Products 08003 CC3538JK-14 Electronic Fuel Injected Saw, 14"

Blade Capacity (Inch): 14
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Blade Capacity (Inch):
Blade Capacity (Inch): 14

Diamond Products, 08003, CC3538JK Electronic Fuel Injected Saw, 14"

Features:

  • Efficient 25% fuel savings on average vs. carbureted engines
  • NO carburetor related problems
  • Reduced issues with bad fuel
  • Faster engine start
  • EFI's dynamic feedback loop optimizes fuel economy and performance to various operating conditions
  • Kohler gasoline 38HP fuel-injected engine
  • Great mid-size saw for service, utility work, and rental
  • Jackshaft allows full engine power
  • Easy to maneuver self-propelled drive
  • Engine adjustment mechanism for belt tightening and maintenance
  • Strongest frame on the market
  • 30% more torque with jackshaft design
  • Fits through a 30" door frame
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Max Depth of Cut with 14" Blade4-3/8"
Max Depth of Cut with 20" Blade7-3/8"
Max Depth of Cut with 26" Blade10-3/8"
Max Depth of Cut with 30" Blade12-3/8"
Blade Shaft Diameter1-3/4"
Arbor Size1" with single drive pin
Blade Shaft Drive6 belts
Blade MountingRight or left
Blade Raise/LowerElectro-hydraulic pump
TransmissionEaton Model 10
Drive Speed0-200 feet per minute
Air Filter4-stage
Fuel Capacity6 gallon
Engine Make/ModelKohler Command Pro ECH980 EFI Gas
Engine Power38 HP
Blade Capacity14"
Weight (lbs.)950
Product Details
Max Depth of Cut with 14" Blade4-3/8"
Max Depth of Cut with 20" Blade7-3/8"
Max Depth of Cut with 26" Blade10-3/8"
Max Depth of Cut with 30" Blade12-3/8"
Blade Shaft Diameter1-3/4"
Arbor Size1" with single drive pin
Blade Shaft Drive6 belts
Blade MountingRight or left
Blade Raise/LowerElectro-hydraulic pump
TransmissionEaton Model 10
Drive Speed0-200 feet per minute
Air Filter4-stage
Fuel Capacity6 gallon
Engine Make/ModelKohler Command Pro ECH980 EFI Gas
Engine Power38 HP
Blade Capacity14"
Weight (lbs.)950
Note

Note: Please read description carefully. Do not base your order on the picture presented.
