Order 75044 by Diamond Products 5801244 CC7574DK-42 In-Line Kubota Diesel Saw

info@USMegaStore.com

+1 (838) 222-2203
+1 (718) 504-5719 (Intl.)

Options and Related Products

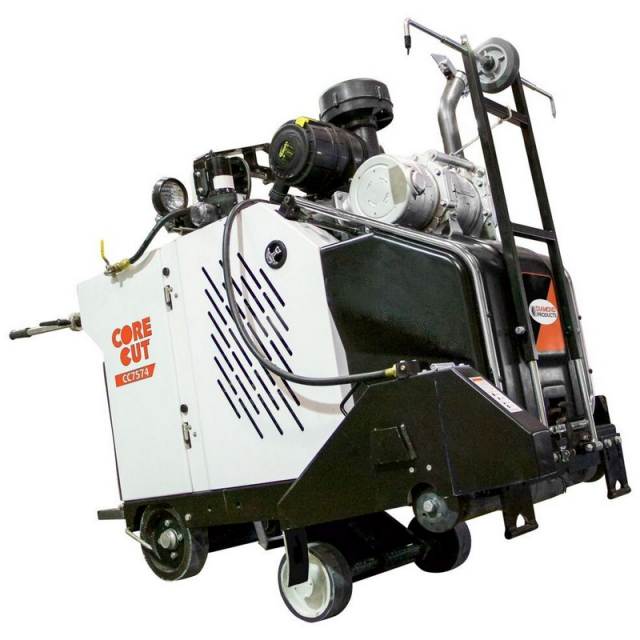

Diamond Products, 75044, 5801244 CC7574DK-42 In-Line Kubota Diesel 74HP Walk Behind Saw, Single Speed, 42" Blade Capacity

Features:

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Maximum Depth of Cut	17-1/4" (7" flange)
Engine	Kubota® Turbo Diesel
Engine Specs	4 Cylinder, 3.3 Liter
Max Engine Power	74.5HP at 2,600 RPM
Power at the Blade Shaft	70 Horsepower
Emission Regulation	EPA Tier 4 Final Compliant
Blade Shaft Diameter	2"
Arbor Size	1" w/drive pin
Blade Shaft Bearings	Multiple ball bearings in oil bath
Blade Shaft Drive	20 V-belts-4 power bands
Blade Mounting	Right or Left
Blade Raise and Lower	Electro-hydraulic pump
Blade Coolant	Dual multi-spray tubes
Drive Speed	0-250 feet/min forward and reverse
Transmission	Hydro pump powering dual wheel motors
Air Filter	4 stage w/restriction indicator
Fuel Capacity	9 gallons

Maximum Depth of Cut	17-1/4" (7" flange)
Engine	Kubota® Turbo Diesel
Engine Specs	4 Cylinder, 3.3 Liter
Max Engine Power	74.5HP at 2,600 RPM
Power at the Blade Shaft	70 Horsepower
Emission Regulation	EPA Tier 4 Final Compliant
Blade Shaft Diameter	2"
Arbor Size	1" w/drive pin
Blade Shaft Bearings	Multiple ball bearings in oil bath
Blade Shaft Drive	20 V-belts-4 power bands
Blade Mounting	Right or Left
Blade Raise and Lower	Electro-hydraulic pump
Blade Coolant	Dual multi-spray tubes
Drive Speed	0-250 feet/min forward and reverse
Transmission	Hydro pump powering dual wheel motors
Air Filter	4 stage w/restriction indicator
Fuel Capacity	9 gallons

Note: Please read description carefully. Do not base your order on the picture presented.
