Blade Capacity (in):: Blade Capacity (in): 26

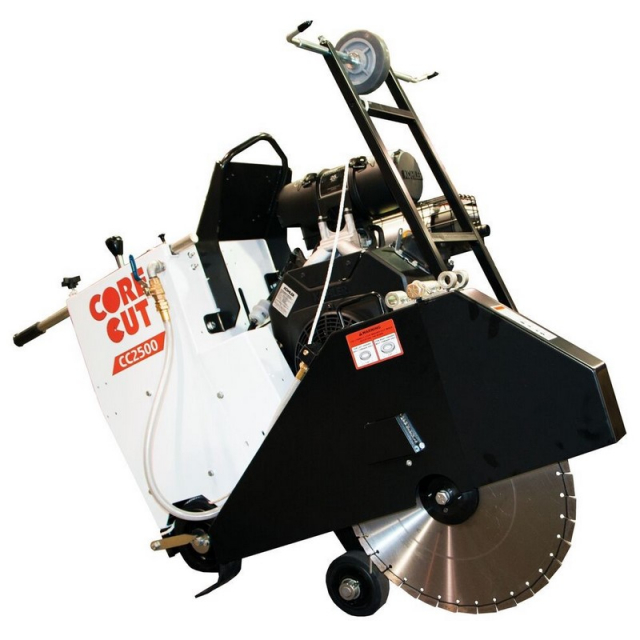

Diamond Products, 78816, 5800599 CC2525KC-26 Kohler Command CH742 Medium Walk Behind Saw, 25 HP, 41.2 Lbs.-Ft. Torque

78816 Includes Only:

Electric start (20-25 HP models)
Low oil alert
Tach/Hour meter (20-25 HP models)
Frame lift
Quick disconnect blade flanges
Cutting depth indicator
Telescoping front pointer

Features:

Rigid high strength 3/16" steel box frame with heavy bar reinforcement
2 position tilt handle bars
Push or self propelled drive
Screw feed raise and lower with optional power raise and lower
Cyclone air filter on gas models
Positive gear drive to rear axle via Eaton hydrostatic transmission

Dimensions:

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Maximum Depth of Cut	4-5/8"
Blade Shaft RPM	Varies
Blade Shaft Diameter	1-1/2"
Arbor Size	1" w/drive pin
Blade Shaft Drive	4 belt up to 20.8HP, 5 belt for 25HP
Blade Mounting	Right or Left
Transmission	Eaton Model 6
Drive Speed	0-130 feet/min
Fuel Capacity	5 gallons

Product Details

Maximum Depth of Cut	4-5/8"
Blade Shaft RPM	Varies
Blade Shaft Diameter	1-1/2"
Arbor Size	1" w/drive pin
Blade Shaft Drive	4 belt up to 20.8HP, 5 belt for 25HP
Blade Mounting	Right or Left
Transmission	Eaton Model 6
Drive Speed	0-130 feet/min
Fuel Capacity	5 gallons

Note: Please read description carefully. Do not base your order on the picture presented.
