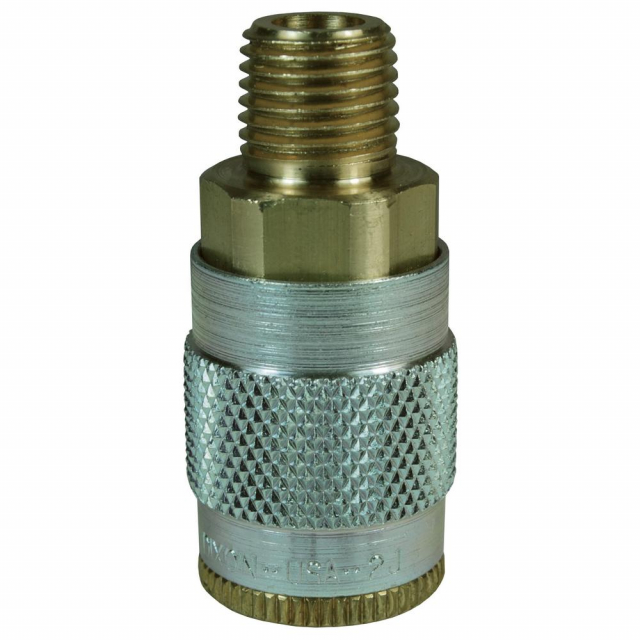

Dixon Valve 2JM2-B J-Series 1/4" Automotive Male Coupler 1/4" NPTF

Specifications

• Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 10,500 PSI (724 bar) Burst
• Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,500 PSI (793 bar) Burst

Construction

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
• Nitrile (Buna-N) seals are standard
• Steel componentry is plated using ROHS Compliant Trivalent Chrome
• Steel sleeve and steel tubular valve

Compatibility & Interchange Data

• Truflate Automotive Interchange
• Parker 10 Series, Rectus 55KM and Tomco A2100/PT400

Safety notes

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure
• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling
