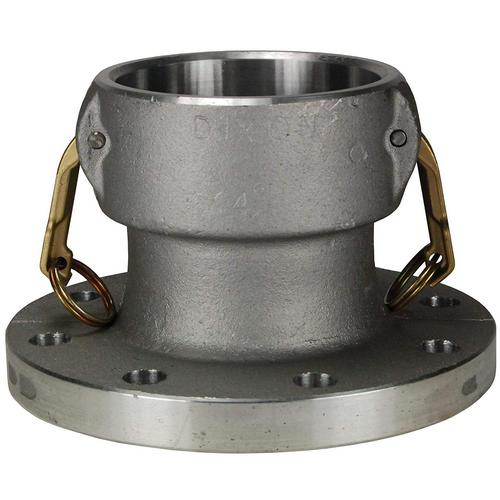

Dixon Valve 800-DL-AL 8" Cam & Groove Coupler x 150# Flange, Aluminum

800-DL-AL, 8" Cam & Groove Coupler x 150# Flange, Aluminum

Applications

• Designed for use with liquids

Use

• Flanges are designed to mate with #150 flange

Specifications

• Produced to interchange with all product produced to Commercial Item Description A-A-59326D

Construction

• Flange has flat face

How it works

• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Safety notes

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed.
