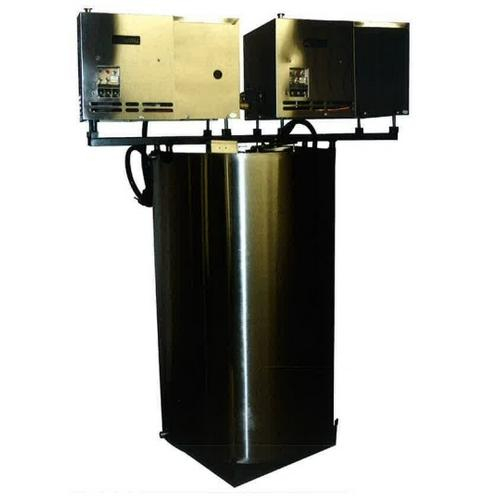

Durastill, Dual-42C-150, Two 42C Commercial Distiller & 150 Gallon Storge Tank
Dual-42C-150 Inclues Only:
- 400216 - (2) 42C Commercial Distiller
- 400122 - 150 Gallons Storage Tank
- Heavy duty distiller mounting bracket
Model 42-C consists of an all stainless steel evaporator tank, stainless steel cabinet, stainless steel float, and an Incoloy (stainless steel) heating element. The condensing coils are stainless steel with steel fins. Several safety mechanisms have been incorporated for your safety and the preservation of the unit. Agiant in the distiller industry. Designed to connect to a demand pump providing distilled water "on tap" throughout a building. Proven to be very dependable over the years.
How It Works:
The purification process by its very nature will not only kill bacteria by the boiling temperature involved in the evaporator tank, but leaves the dead remains of bacteria in the boiler residue along with the minerals and: pollutants in the original raw water. This residue is discarded by draining the evaporator tank occasionally. The steam which moves up the separation column and into the condenser coils will be essentially pure water vapor and this is what is condensed to become distilled water.
Safety Features:
- Float controlled limit switches located on the evaporator tank to control water levels in the tank.
- Thermal safety switch to disconnect heating elements if unit overheats.
Features:
- Main Power on/off control switch
- Pilot switch controlling relay
- Automatic water fill on/off control. Float Control protected
- Manually reset electical thermostat
- Low voltage external pilot circuit
- Boiling tank is 18 gauge 316 alloy stainless steel. Holds 6.79 gallons (2.93 water, 2.85 steam)
- Aluminum cooling fins in stainless steel condeser coils
- 12" diameter condenser fan, 1/20 HP Motor
- Distiller Cabinet - 20 gauge 304 Stainless Steel.
- Storage tank is 18 gauge 304 Stainless Steel. Holds 150 gallons
- 208 or 240 volts AC - 50/60 HZ - single pahse - 5000 watts per distiller
