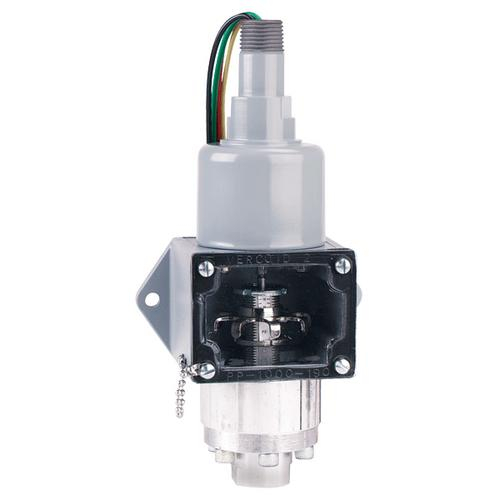

Dwyer, 1006E-B3-J, Series 1000E 316 SS Pressure Chamber FEP, adj. Range 50-350 psig

Explosion-proof pressure switch, adj. range 50-350 psig (3.5-24.1 bar), approx. deadband (fixed) 18 psig (1.2 bar).

Features

Weatherproof housing is ideal for a wide variety of applications where dust or water is present
Spring movement design provides for control in any mounting position and prevents contact chatter reducing false or inconsistent switching
UL listed to support rigorous process applications and regulations

Applications

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Wetted Materials:	See pressure chamber and diaphragm material in model chart.
Temperature Limits:	-30 to 170°F (-35 to 77°C).
Pressure Limit:	3000 psig (206.8 bar).
Enclosure Rating:	Explosion-proof, UL listed for Class I, Groups A, B, C and D; Class II, Groups E, F and G.
Switch Type:	SPDT snap switch. Hermetically sealed optional.
Electrical Rating:	15 A at 125/250/480 VAC res., 0.5 A at 125 VDC, 0.25 A at 250 VDC.
Wiring Connections:	18 AWG, 18" (460 mm) color-coded leads: N.O. (yellow), N.C. (black), and common (red).
Conduit Connection:	1/2" male NPT.
Process Connection:	1/4" female NPT.
Mounting Orientation:	Any position.
Set Point Adjustment:	Internal thumbwheel.
Weight:	3 lb (1.4 kg).
Deadband:	See model chart.
Agency Approvals:	CE, UL.

Manufacturer List Price:

$1,336.74
