Dwyer, AQTIAP-WDPM-002-PKIT, Series AQTIA Air Quality Test Instruments Kit 2"in w.c.

The SERIES AQTIA Air Quality Test Instruments combine the versatile Model UHH2 handheld base with various compatible probes and modules. The versatile combination provides a line of instruments capable of streamlining a technician’s everyday testing by combining all into one product and using Bluetooth SIG, Inc. wireless technology for ease of use.

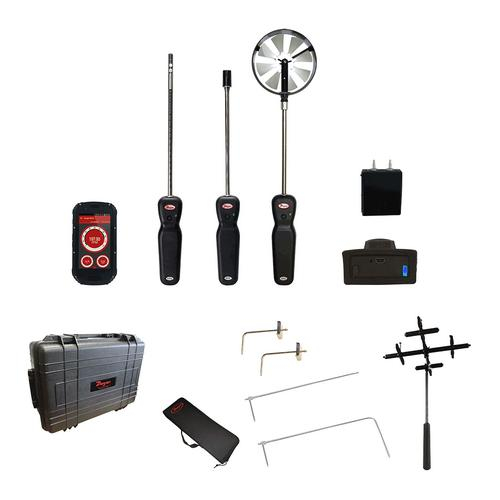

Included:

1 - UHH2 Universal handheld
1 - VP2 wireless vane thermo-anemometer
1 - AP2 wireless thermo-anemometer
1 - RP2 wireless thermo-hygrometer
1 - WDPM-002 wireless differential pressure probe
1 - 160-18 Pitot tube
1 - 160F straight pitot tube
1 - 160G Averaging Air Flow grid
2 - A-303 Portable Static Pressure Tip
1 - UHH-BTG mobile wireless gateway
1 - UHH-C1 Soft carrying case
1 - UHH-C2 Hard carrying case with foam inserts
1 - NIST Calibration certificate
1 - UHH-CLB2 charging cable
1 - Headphone
1 - User manual

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

WDPM SPECIFICATIONS
Pressure	±2 in w.c. (498.18 Pa)
Service:	Non-corrosive dry gases.
Wetted Materials:	Consult factory.
Accuracy:	±0.5% FS span at 25°C (includes non linearity, hysteresis, and non repeatability).
Engineering Units:	Pressure: in w.c., ft w.c., in Hg, psi, OzSl, mm w.c., cm w.c., mBar, Pa, hPa, and kPa; Velocity: fpm, mph, kn, m/s, m/h, k/h, and fps; Flow: cfm, gpm, gph, gpd, m3/s, m3/h, lps, lpm, and lph.
Temperature Limits:	Compensated: 32 to 140°F (0 to 60°C); Process/Ambient: 14 to 140°F (-10 to 60°C).
Thermal Effects:	±0.01% FS/°F (±0.02% FS/°C).
Battery Charging Limits:	32 to 113°F (0 to 45°C).
Power Requirements:	3.7 V YT562447 lithium ion battery, installed functionally, user replaceable.
Wireless Distance:	At least 50' (15 m).
Connections:	Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) ID tubing.
Weight:	2.5 oz (70.87 g).
Agency Approvals:	CE with CE approved charger, RoHS, FCC.
UHH2 SPECIFICATIONS
Display:	4.3" QHD Gorilla glass, 960x540.
Wireless Distance:	50' (15 m) or greater.
Response Time:	1 s.
Temperature Limits:	Operating: -4 to 140°F (-20 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
Humidity Limits:	5 to 95% RH.
Power Requirements:	2000mAh lithium ion battery, installed functional, non-replaceable.
Memory:	RAM 1G & ROM 4G.
Operating System:	Android 4.2.2.
CPU:	MTK6589W Quad Core 1.2 GHz.
Enclosure Rating:	IP68.
Weight:	15.9 oz (450 g).
Agency Approvals:	CE.
AP2 THERMO-ANEMOMETER PROBE SPECIFICATIONS
Service:	Dry, clean air.
Temperature Limits:	Process: -20 to 200°F (-29 to 93°C); Ambient: -20 to 140°F (-29 to 60°C); Battery Charging: 32 to 113°F (0 to 45°C).
Range:	Air Velocity: 0 to 6000 FPM (0 to 30 m/s); Volumetric Air: 999,999 in selected flow units; Temperature: -40 to 212°F (-40 to 100°C).
Accuracy:	Air Velocity: ±3% FS within temperature range of 40 to 90°F (4 to 32°C); Temperature: ±0.5°F (±0.28°C).
Response Time:	1 s.
Probe Length:	8" (203 mm) insertion.
Power Requirements:	3.7 V YT562447 Lithium ion battery, installed functional, user replaceable.
Maximum Wireless Distance:	50' (15 m).
Handle Enclosure:	Thermoplastic elastomer over polycarbonate.
Supplied With:	Wrist strap.
Weight:	11.2 oz (331.22 g).
Agency Approvals:	CE (not while charging), FCC compliant.

Product Details

WDPM SPECIFICATIONS
Pressure	±2 in w.c. (498.18 Pa)
Service:	Non-corrosive dry gases.
Wetted Materials:	Consult factory.
Accuracy:	±0.5% FS span at 25°C (includes non linearity, hysteresis, and non repeatability).
Engineering Units:	Pressure: in w.c., ft w.c., in Hg, psi, OzSl, mm w.c., cm w.c., mBar, Pa, hPa, and kPa; Velocity: fpm, mph, kn, m/s, m/h, k/h, and fps; Flow: cfm, gpm, gph, gpd, m3/s, m3/h, lps, lpm, and lph.
Temperature Limits:	Compensated: 32 to 140°F (0 to 60°C); Process/Ambient: 14 to 140°F (-10 to 60°C).
Thermal Effects:	±0.01% FS/°F (±0.02% FS/°C).
Battery Charging Limits:	32 to 113°F (0 to 45°C).
Power Requirements:	3.7 V YT562447 lithium ion battery, installed functionally, user replaceable.
Wireless Distance:	At least 50' (15 m).
Connections:	Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) ID tubing.
Weight:	2.5 oz (70.87 g).
Agency Approvals:	CE with CE approved charger, RoHS, FCC.
UHH2 SPECIFICATIONS
Display:	4.3" QHD Gorilla glass, 960x540.
Wireless Distance:	50' (15 m) or greater.
Response Time:	1 s.
Temperature Limits:	Operating: -4 to 140°F (-20 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
Humidity Limits:	5 to 95% RH.
Power Requirements:	2000mAh lithium ion battery, installed functional, non-replaceable.
Memory:	RAM 1G & ROM 4G.
Operating System:	Android 4.2.2.
CPU:	MTK6589W Quad Core 1.2 GHz.
Enclosure Rating:	IP68.
Weight:	15.9 oz (450 g).
Agency Approvals:	CE.
AP2 THERMO-ANEMOMETER PROBE SPECIFICATIONS
Service:	Dry, clean air.
Temperature Limits:	Process: -20 to 200°F (-29 to 93°C); Ambient: -20 to 140°F (-29 to 60°C); Battery Charging: 32 to 113°F (0 to 45°C).
Range:	Air Velocity: 0 to 6000 FPM (0 to 30 m/s); Volumetric Air: 999,999 in selected flow units; Temperature: -40 to 212°F (-40 to 100°C).
Accuracy:	Air Velocity: ±3% FS within temperature range of 40 to 90°F (4 to 32°C); Temperature: ±0.5°F (±0.28°C).
Response Time:	1 s.
Probe Length:	8" (203 mm) insertion.
Power Requirements:	3.7 V YT562447 Lithium ion battery, installed functional, user replaceable.
Maximum Wireless Distance:	50' (15 m).
Handle Enclosure:	Thermoplastic elastomer over polycarbonate.
Supplied With:	Wrist strap.
Weight:	11.2 oz (331.22 g).
Agency Approvals:	CE (not while charging), FCC compliant.
