Volumetric Flow Rate, Max:: Volumetric Flow Rate, Max: 0-1000 ml/min

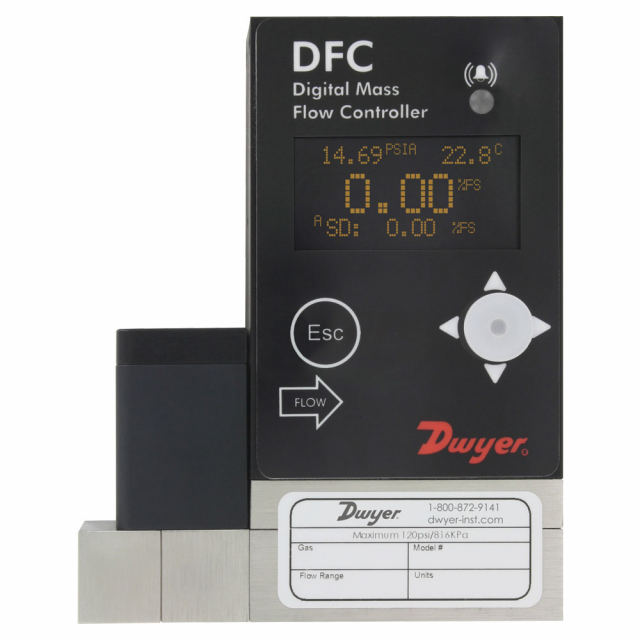

Dwyer, DFC-37010-V-ALA2, Digital Flow Controller, 0-1000 ml/min with LED Display, 1/8" Compression Fittings, 0-5 VDC Output, RS-232 Digital Interface, (RS-485) Selectable

Features:

Able to quickly see changes due to fast <20 ms response rate
Simple setup using configuration/calibration software
Works for a variety of application with up to 90 different user selectable gases and gas mixes
Meet application requirements with high accuracy and repeatability
Minimize downtime with self-diagnostics through status LED or OLED indication

Applications:

Gas flow measurement
Gas flow control
Operating pumps and valves
Process equipment
Vacuum process
Scientific and analytical
Bioreactors and surface depositions

The Series DFC Digital Flow Controller combines a straight tube sensor with a restrictor flow element to provide accurate readings and control. Simultaneous displays of mass flow, volumetric flow, pressure and temperature parameters promote applications in a variety of industries.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Accuracy	± 0.5 % of reading, + 0.2 % FS
Applications	Fluid Measurement and Control, Pump Control
Body Size	Low Flow
Compliance	CE
Data Interface	RS232, RS485
Display Note	2 x 16 character OLED (model selectable)
Display Type	LED
Leak Rate Under Vacuum	less than 10^-9 cc He/s
Materials	Fluoroelastomer
Materials, Wetted	316 Stainless Steel, 416 Stainless Steel, Alumina Ceramic, Epoxy, FKM, Glass, Gold, Silicone, Steel
Media Compatibility	Argon, Compatible Gases, Nitrogen
Operating Temperature, Max	140 °F
Operating Temperature, Min	14 °F
Output Detail	0-5 VDC default (4-20 mA, 0-10 VDC display selectable)
Output Signal	Current, Voltage
Particulate Size, Max	20 microns
Pressure Limits	Up to 120 psi
Pressure Type	Gauge
Process Connection Size	1/8 in
Process Connection Type	Compression Fitting
Relay Rating	Programmable Solid State Relay
Repeatability	± 0.2%
Response Time	150 ms
Supply Power Type	DC
Supply Voltage	12 to 26 Vdc
Volumetric Flow Rate, Max	1000 ml/min
Volumetric Flow Rate, Min	0 ml/min
Weight	1.4 lb

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Accuracy	± 0.5 % of reading, + 0.2 % FS
Applications	Fluid Measurement and Control, Pump Control
Body Size	Low Flow
Compliance	CE
Data Interface	RS232, RS485
Display Note	2 x 16 character OLED (model selectable)
Display Type	LED
Leak Rate Under Vacuum	less than 10^-9 cc He/s
Materials	Fluoroelastomer
Materials, Wetted	316 Stainless Steel, 416 Stainless Steel, Alumina Ceramic, Epoxy, FKM, Glass, Gold, Silicone, Steel
Media Compatibility	Argon, Compatible Gases, Nitrogen
Operating Temperature, Max	140 °F
Operating Temperature, Min	14 °F
Output Detail	0-5 VDC default (4-20 mA, 0-10 VDC display selectable)
Output Signal	Current, Voltage
Particulate Size, Max	20 microns
Pressure Limits	Up to 120 psi
Pressure Type	Gauge
Process Connection Size	1/8 in
Process Connection Type	Compression Fitting
Relay Rating	Programmable Solid State Relay
Repeatability	± 0.2%
Response Time	150 ms
Supply Power Type	DC
Supply Voltage	12 to 26 Vdc
Volumetric Flow Rate, Max	1000 ml/min
Volumetric Flow Rate, Min	0 ml/min
Weight	1.4 lb

Note

Note: Please read description carefully. Do not base your order on the picture presented.
