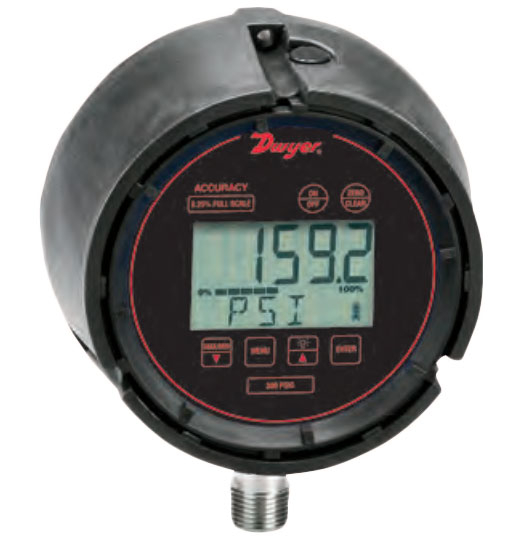

Dwyer DSGT-109-C0S Series DSGT Indicating Transmitter

Range: 0-300 psig.
  • Brand Dwyer
  • Part # DSGT-109-C0S
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Range:
Range: 0-300 psig.

Dwyer, DSGT-109-C0S, Series DSGT Digital Indicating Transmitter


Series DSGT Digital Indicating Transmitter is a versatile multi-function process gage that features an excellent 0.25% full scale accuracy. This all-in-one digital gage package is designed to reduce installation costs, instrument cost, and save space where an application requires a gage, transmitter, and switches. The Series DSGT gage comes standards with a loop-powered 4-20 mA transmitter output and is offered with one or two optional SPDT switches.

The Series DSGT gage is housed in a durable fiberglass reinforced thermoplastic case that is designed to meet NEMA 4 (IP65) requirements. The gage features a menu-driven display for easy customization. User selectable features include 12 engineering units of measure, password protected calibration and disable functions, as well as an adjustable bar graph and update/dampening rates.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Gage Stecifications
Service Compatible, non-combustible gases & liquids.
Wetted Materials 17-4 SS sensor, 316 SS Socket.
Housing Materials Fiberglass reinforced thermoplastic case.
Accuracy ±0.25% full scale (includes linearity, hysteresis, repeatability).
Pressure Limit 2 x full scale range.
Process Connection 1/2" male NPT.
Display 5 Digit (0.88" high).
Transmitter Stecifications
Power Requirements 12-36 VDC (loop-powered).
Memory Back Up Supply (2) C alkaline batteries, installed functional, user replaceable.
Output Signal 4-20 mA.
Response Time 100 ms.
Temperature Limits 14 to 140°F (-10 to 60°C).
Thermal Effects 0.04% full scale/°F.
Electrical Connections 3 ft flying leads.
Loop Resistance DC; 0-1090 ohms maximum.
Switch Stecifications
Switch Type 1 SPDT (-C1S option); 2 SPDT (-C2S option).
Repeatability 0.25% full scale.
Electrical Rating 1 A @ 24 VDC or 0.5 A @ 125 VAC.
Electrical Connections 3 ft flying leads.
Power Requirements 12-36 VDC (separate line power).
Set Point Adjustments Adjustable through menu selections.
Weight 1.45 lb (.66 kg).
Agency Approvals CE.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Gage Stecifications
Service Compatible, non-combustible gases & liquids.
Wetted Materials 17-4 SS sensor, 316 SS Socket.
Housing Materials Fiberglass reinforced thermoplastic case.
Accuracy ±0.25% full scale (includes linearity, hysteresis, repeatability).
Pressure Limit 2 x full scale range.
Process Connection 1/2" male NPT.
Display 5 Digit (0.88" high).
Transmitter Stecifications
Power Requirements 12-36 VDC (loop-powered).
Memory Back Up Supply (2) C alkaline batteries, installed functional, user replaceable.
Output Signal 4-20 mA.
Response Time 100 ms.
Temperature Limits 14 to 140°F (-10 to 60°C).
Thermal Effects 0.04% full scale/°F.
Electrical Connections 3 ft flying leads.
Loop Resistance DC; 0-1090 ohms maximum.
Switch Stecifications
Switch Type 1 SPDT (-C1S option); 2 SPDT (-C2S option).
Repeatability 0.25% full scale.
Electrical Rating 1 A @ 24 VDC or 0.5 A @ 125 VAC.
Electrical Connections 3 ft flying leads.
Power Requirements 12-36 VDC (separate line power).
Set Point Adjustments Adjustable through menu selections.
Weight 1.45 lb (.66 kg).
Agency Approvals CE.
