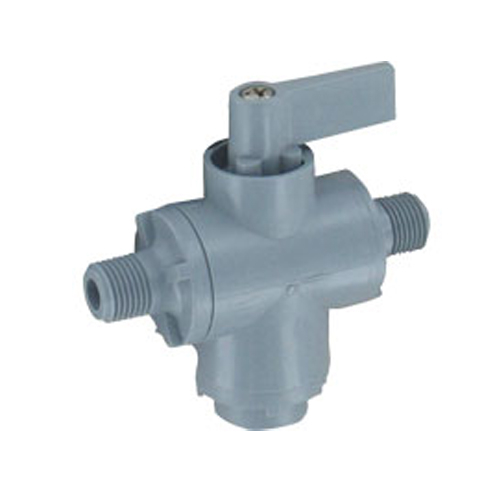

Dwyer A-5004-1 A-5000 Shut-Off Valve

Dwyer, A-5004-1, Series A-5000 Shut-Off Valve, 1/8" Hose Barb Inlet and Two 1/4" FNPT Outlets

3-Way PVC Ball Valve

The Series A-5000 3-Way Shut-Off Valve is constructed of solid gray PVC, has Buna-N seals, and a rotating flag handle. The A-5000 can withstand a maximum operating pressure of 125 psi (8.6 bar) and a maximum temperature of 140°F (60°C). The handle has 180° rotation and lies directly over the open port. When the handle is rotated 90° from either port, flow is shut off to both outlet ports. Since the bottom port on the valve is common, the Series A-5000 can be used as a diverter or a selecting valve. These valves can be used to conveniently hook 3 instruments together, as well as testing various gages and transmitters.
