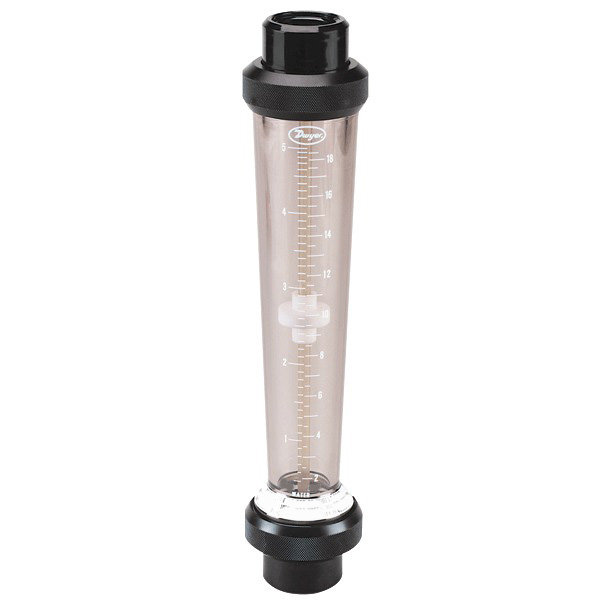

Dwyer UV-B112 UV Ultra-View Polysulfone Flowmeter

Range: 2.5-28 SCFM
  • Brand Dwyer
  • Part # UV-B112
  • Model # Series UV
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Range:
Range: 2.5-28 SCFM

Dwyer, UV-B112, Series UV Ultra-View Polysulfone Flowmeter, 2.5-28 SCFM

Polysulfone flowmeter, range 2.5-28 SCFM (70-780 LPM) air.

The Series UV Ultra-View Polysulfone Flowmeter is an ultra-pure, laboratory grade flowmeter with a dual scale that measures flow in GPM and LPM of water, air and other compatible media. The Series UV is designed to withstand high temperatures up to 212°F (100°C) and pressures up to 150 psi (10.34 bar).

Features:

  • Corrosion-resistant polysulfone body ideal for applications where other flowmeters fail saving replacement cost and time
  • Easy to clean body yields low maintenance costs
  • Polycarbonate shield protects internal scale increasing product operating life
  • Low installation costs with optional panel mount polysulfone fittings

Product Applications

  • Monitor chill water flow
  • Reverse osmosis systems
  • Deionized water systems
  • Potable water systems
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
ServiceCompatible liquids or gases
Wetted MaterialsPolysulfone body and fittings, Fluoroelastomer O-rings and virgin PTFE float
Temperature Limits35 to 212°F (2 to 100°C); 35 to 130°F (2 to 54°C) for PVC fitting option
Pressure Limits150 psi (10.34 bar)
Accuracy for Liquid Models±2% full scale @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only)
Accuracy for Gas Models±2% full scale @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only). Exception: UV-B112 accuracy ±4%
Repeatability±1% full scale @ 70 ±2°F (21.1°C) and 14.7 psia (in line connection rating only)
Process Connections1" female NPT. Optional 90° Polysulfone elbow - 1" male NPT
Scale Length6" (152.40) - 7" (177.80), depending on model
Fitting TorqueMaximum 22 ft-pounds
Weight1 lb (457 g) (for 20 GPM range)
CAUTION: Ball valves can have a "water cannon" effect on opening, creating pressure that exceeds the warrantied ratings will damage the flowmeter. Series UV Flowmeters are for indoor use only or areas without direct sunlight. Polysulfone is adversely affected by ultraviolet light.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ServiceCompatible liquids or gases
Wetted MaterialsPolysulfone body and fittings, Fluoroelastomer O-rings and virgin PTFE float
Temperature Limits35 to 212°F (2 to 100°C); 35 to 130°F (2 to 54°C) for PVC fitting option
Pressure Limits150 psi (10.34 bar)
Accuracy for Liquid Models±2% full scale @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only)
Accuracy for Gas Models±2% full scale @ 70°F ±2°F (21.1°C) and 14.7 psia (in line connection rating only). Exception: UV-B112 accuracy ±4%
Repeatability±1% full scale @ 70 ±2°F (21.1°C) and 14.7 psia (in line connection rating only)
Process Connections1" female NPT. Optional 90° Polysulfone elbow - 1" male NPT
Scale Length6" (152.40) - 7" (177.80), depending on model
Fitting TorqueMaximum 22 ft-pounds
Weight1 lb (457 g) (for 20 GPM range)
CAUTION: Ball valves can have a "water cannon" effect on opening, creating pressure that exceeds the warrantied ratings will damage the flowmeter. Series UV Flowmeters are for indoor use only or areas without direct sunlight. Polysulfone is adversely affected by ultraviolet light.
