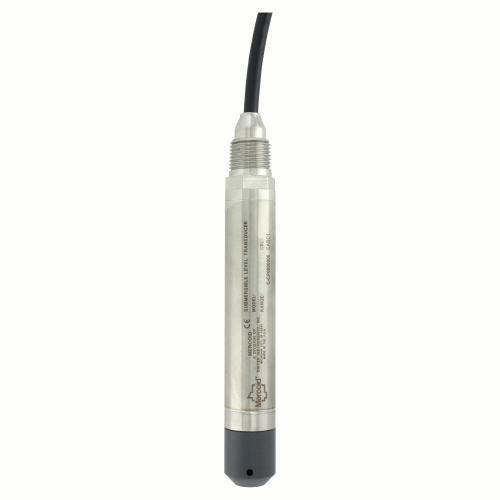

Dwyer SBLT2-170M-200M SBLT2 Submersible Level Transmitter

  • Brand Dwyer
  • Part # SBLT2-170M-200M
  • Model # SBLT2
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

The Series SBLT2 Submersible Level Transmitters are manufactured for years of trouble free service. These Series measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezo resistive sensing element, encased in a 316 SS housing.

Features:

  • Slim design for tight applications with bullet nose design which protects the diaphragm from damage
  • Maintenance free filter eliminates particulate or water droplets from entering the transducer
  • Excellent chemical compatibility
  • 270 lb tensile strength shielded and vented cable
  • NPT connection allows the unit to be rigidly installed in a pipe/conduit, or the addition of a A-625 hanging loop for attaching a chain for pulling out of the installation
  • Standard 72 hour lead time ensures minimal downtime

Product Applications:

  • Well monitoring
  • Ground water monitoring
  • Environmental remediation
  • Surface water monitoring
  • Down hole
  • Water Tanks
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
ServiceCompatible liquids.
Pressure Limit2X FS.
Cable Lenght200 m polyurethane
Range170 m wc
Wetted MaterialsBody: 316 SS, 316L SS;Bullet nose: PVC;Cable: Polyether polyurethane;Seals: Fluoroelastomer.
Accuracy±0.25% FS.
Temperature Limit:0 to 150°F (-18 to 66°C);
Compensated Temperature Range0 to 140°F (-18 to 60°C)
Thermal Effect±0.02% full scale/°F.
Power Requirement10 to 30 VDC (≤1000 ft (305 m) of cable)
Output Signal4 to 20 mA DC, 2-wire.
Response Time50 ms.
Max. Loop Resistance900 Ω at 30 VDC.
Electrical ConnectionsWire pigtail.
Mounting OrientationSuspended in tank below level being measured.
Electrical ProtectionLightning and surge protection
Weight2.2 lb (1.0 kg).
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ServiceCompatible liquids.
Pressure Limit2X FS.
Cable Lenght200 m polyurethane
Range170 m wc
Wetted MaterialsBody: 316 SS, 316L SS;Bullet nose: PVC;Cable: Polyether polyurethane;Seals: Fluoroelastomer.
Accuracy±0.25% FS.
Temperature Limit:0 to 150°F (-18 to 66°C);
Compensated Temperature Range0 to 140°F (-18 to 60°C)
Thermal Effect±0.02% full scale/°F.
Power Requirement10 to 30 VDC (≤1000 ft (305 m) of cable)
Output Signal4 to 20 mA DC, 2-wire.
Response Time50 ms.
Max. Loop Resistance900 Ω at 30 VDC.
Electrical ConnectionsWire pigtail.
Mounting OrientationSuspended in tank below level being measured.
Electrical ProtectionLightning and surge protection
Weight2.2 lb (1.0 kg).
