Options and Related Products

Type:: Type: Pulse Output and Modbus® Communications

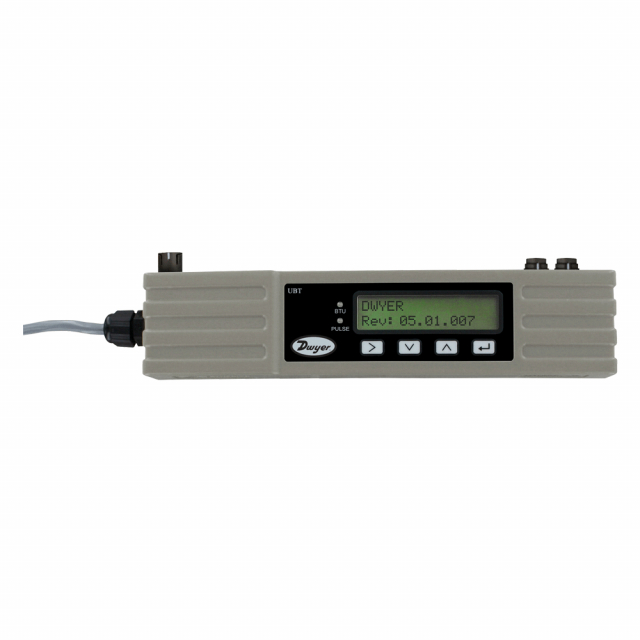

Dwyer, UBT-24, 3/4-4" Ultrasonic Heat Meter with Pulse Output and Modbus® Communications

Features:

Save on installation costs with non-invasive pipe measurement
Simplified installation with all necessary components included, such as converter, sensor, cables and mounting accessories
Fit application requirements with compact and lightweight design, that can be easily installed, all in one clamp-on unit intended for homogeneous liquids that contain no air
Cut down evaluation time with easy-to-read text displaying both energy rate and totalized energy with pulse output and communication options with a convenient backlight for visual comfort

Applications:

Building services
Energy management
Heat/energy metering for energy management or building services utilizing chilled water circuits

The Series UBT Clamp-On Ultrasonic Thermal Energy Meter is an economical clamp-on ultrasonic heat meter. It is an ultrasonic alternative to the traditional inline thermal energy meters. The series uses temperature sensors for energy measurement and ultrasonic waves with time differentials for flow measurement.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Accuracy	± 3 %
Accuracy Detail	± 3% of flow reading for velocity rate >1 ft/s (0.3 m/s)
Applications	Energy Management Systems
Compliance	CE
Data Interface	Modbus
Display Note	Backlit: 2.28" x 0.43" (58 mm x 11 mm), 2 line x 16 characters
Display Type	LCD
Electrical Connection	Cable
Enclosure Ratings	IP54
Flow Direction	Any
Linear Flow Rate, Max	32 ft/s
Linear Flow Rate, Min	0.3 ft/s
Materials	Polycarbonate
Mounting Orientation	None
Operating Temperature, Max	122 °F
Operating Temperature, Min	32 °F
Output Detail	Pulse: 1 optoisolated MOSFET relay, 500 mA max, 166 pps max, 200 Hz max
Output Signal	DC Pulse
Pipe Size, Max	4 in
Pipe Size, Min	45355 in
Power Consumption	DC: 7 W / AC: 7 VA
Process Temperature, Max	185 °F
Process Temperature, Min	32 °F
Relative Humidity	90% RH at 122°F
Repeatability	± 0.15%
Repeatability Note	± 0.15% of measured value
Supply Power Note	12 V to 24 V ± 10% AC/DC at 7 watts per unit. Optional plug-in 12 V power supply
Supply Power Type	AC/DC
Supply Voltage	12 to 24 Vac/Vdc
Tube Wall Thickness	0.39 in
Weight	1.1 lb

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Accuracy	± 3 %
Accuracy Detail	± 3% of flow reading for velocity rate >1 ft/s (0.3 m/s)
Applications	Energy Management Systems
Compliance	CE
Data Interface	Modbus
Display Note	Backlit: 2.28" x 0.43" (58 mm x 11 mm), 2 line x 16 characters
Display Type	LCD
Electrical Connection	Cable
Enclosure Ratings	IP54
Flow Direction	Any
Linear Flow Rate, Max	32 ft/s
Linear Flow Rate, Min	0.3 ft/s
Materials	Polycarbonate
Mounting Orientation	None
Operating Temperature, Max	122 °F
Operating Temperature, Min	32 °F
Output Detail	Pulse: 1 optoisolated MOSFET relay, 500 mA max, 166 pps max, 200 Hz max
Output Signal	DC Pulse
Pipe Size, Max	4 in
Pipe Size, Min	45355 in
Power Consumption	DC: 7 W / AC: 7 VA
Process Temperature, Max	185 °F
Process Temperature, Min	32 °F
Relative Humidity	90% RH at 122°F
Repeatability	± 0.15%
Repeatability Note	± 0.15% of measured value
Supply Power Note	12 V to 24 V ± 10% AC/DC at 7 watts per unit. Optional plug-in 12 V power supply
Supply Power Type	AC/DC
Supply Voltage	12 to 24 Vac/Vdc
Tube Wall Thickness	0.39 in
Weight	1.1 lb

Note

Note: Please read description carefully. Do not base your order on the picture presented.
